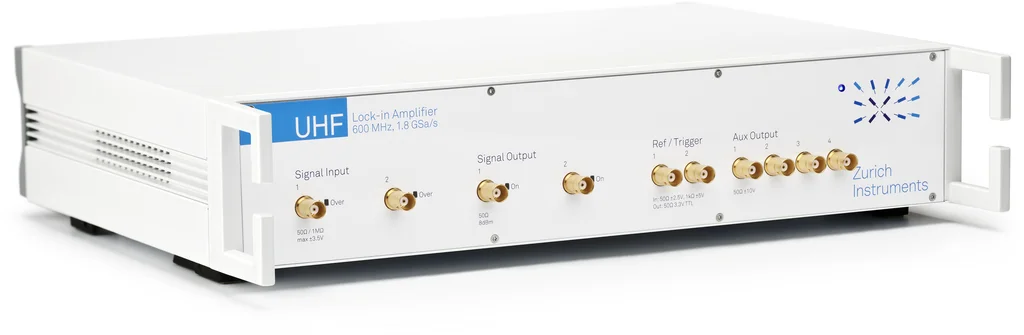

UHFLI 600 MHz Lock-in Amplifier

The UHFLI 600 MHz Lock-in Amplifier from Zurich Instruments dual-channel lock-in amplifier, designed to operate at frequencies from DC up to 600MHz.

In addition to providing the highest operation frequency among all commercial lock-in amplifiers, the UHFLI offers the lowest time constant of 30 ns for demodulation – resulting in a demodulation bandwidth that exceeds 5 MHz.

In combination with the widest choice of available options and the instrument control software LabOne, the UHFLI is the flagship of all Zurich Instruments products and represents the state of the art of today’s scientific instrumentation.

Buy yours now

Application Categories: Quantum & Nanotech / Medical & life Sciences / Research & Education / Sensing / Defence & Aerospace

Description

Features

Applications

Datasheets

Description

Features

Lock-in operating modes

UHF signal inputs
Internal reference mode	Single and dual lock-in
External reference mode	Single and dual lock-in
Auto reference mode	Single and dual lock-in
Triple-harmonic mode	1 fundamental +3 harmonics (simultaneous)
Multi-harmonic mode	1 fundamental+7 harmonics (simultaneous), requires UHF-MF option
Arbitrary frequency mode	8 frequencies, requires UHF-MF option
Frequency range	DC-600 MHz
Input impedance	50 Ω or 1 MΩ \|\| 18 pF
Input voltage	4 nV/√Hz above 100 kHz
Dynamic reserve
Input range (AC+DC)	±3.5 V
Input full range sensitivity	1 nV to 1.5 V
A/D conversion	12 bits, 1.8 GSa/s
UHF signal outputs
Frequency range	DC-600 MHz
Output ranges	±150 mV, ±1.5 V (high-impedance load) -12.5 dBm, 7.5 dBm (50 Ω load)
D/A conversion	14 bits, 1.8 GSa/s
Reference and nanosecond triggers
Frequency range	1mHz to 600MHz
Number of demodulators	8 dual-phase
Output sample rate on LAN	2 MSa/s (total all demodulators), 64-bit full range
Output sample rate on USB	100 kSa/s (total all demodulators), 64-bit full range
Output sample rate on Aux outputs	28 MSa/s (for each auxiliary output), 16-bit
Filter time constant	30 ns – 76 s
Filter bandwidth	628 µHz to 5 MHz
Filter slope	6, 12, 18, 24, 30, 36, 42, 48 dB/Oct
Scope
Input channels	Signal inputs, trigger inputs, auxiliary inputs, demodulator oscillator phase, demodulator X/Y/R/Theta, PID, boxcar, AU; certain signals only if options installed
Scope modes	Time domain, frequency domain (FFT)
Number of display channels	1; 2 requires UHF-DIG option
Trigger channels	Signal inputs, signal outputs, oscillator phases, DIOs
Trigger modes	Edge
Sampling rates	28 kSa/s to 1.8 GSa/s
Vertical resolution	12 bits
Maximum number of samples per shot	64 kSa; 128 MSa, requires UHF-DIG option
Bandwidth limit mode, vertical resolution increase	Sample decimation, averaging
Cursor math	Location, area, wave, peak, tracking, histogram
Spectrum Analyser
Centre frequency range	0 – 600 MHz
Spectrum modes	FFT(X+iY), FFT(R), FFT(Θ), FFT(f) and FFT((dΘ/dt)/2π)
Statistical options	Amplitude, spectral density, power
Averaging modes	None, exponential moving average
Maximum number of samples per spectrum	8.4MSa
Maximum span	800 kHz</td<
Window functions	Rectangular, Hann, Hamming, Blackman Harris
Cursor math	Location, area, wave, peak, tracking, histogram
Sweeper
Scan parameters	Oscillator frequency, demodulator phase shift, auxiliary offset, signal output amplitudes, signal output offset, PID setpoint, boxcar delay and time; certain parameters only if options installed
Parameter sweep ranges	Full range, linear and logarithmic
Parameter sweep resolution	Arbitrary, defined by start/stop value and number of sweep points
Display parameters	Demodulator output (X, Y, R, Θ, f), auxiliary input
Display options	Single plot, dual plot (e.g., Bode plot), multi-trace
Statistical options	Amplitude, spectral density, power
Preset measurement modes	Parameter sweep, noise amplitude measurement, frequency response analyzer, 3-omega-sweep
Auxiliary signals
High-speed outputs	4 channels, ±10 V, R, Θ, X, Y, or user defined
D/A converter	16 bits, 28 MSa/s
D/A analogue bandwidth	7 MHz
High-speed inputs	2 channels ±10 V
A/D converter	16 bits, 400 kSa/s
A/D analogue bandwidth	100 kHz
Connectivity and others
Host connection	LAN / Ethernet, 1 Gbit/s USB 2.0 high-speed, 480 Mbit/s
Pre-amplifier control bus	2 ZCtrl (RJ45 connectors) proprietary peripheral interface
Digital I/O	32 bits, 50 MHz, general purpose
Clock	10 MHz, input and output, ultra-high stable ovenized oscillator (OCXO) 0.5 ppm deviation (0.00005 ppm with UHF-RUB option)
General
Dimensions	45 x 35 x 10 cm 17.7 x 13.6 x 3.9 inch, suited for 19 inch rac
Weight	6.4kg
Power supply AC line	100-240 V (±10%), 50/60 Hz
Operating temperature	+5 °C to +40 °C
Operating environment	IEC61010, indoor location, installation category II, pollution degree 2
Operating altitude	Up to 2000m
Signal connectors	BNC on front panel, SMA on back panel
PC operating systems	See LabOne Compatibility
