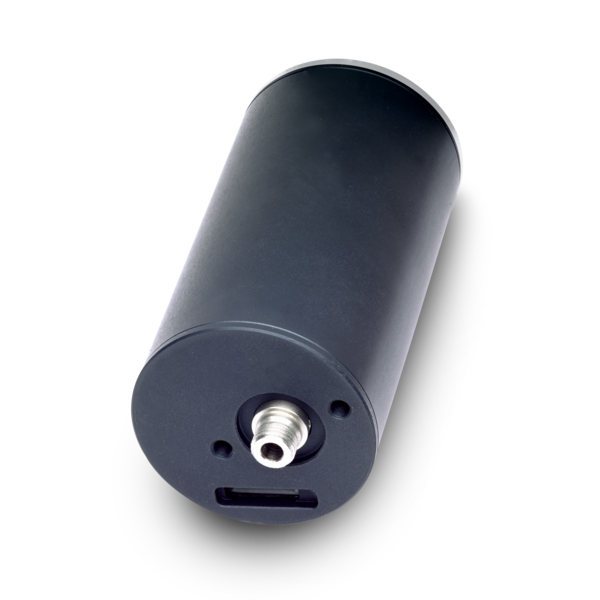

Qtube Process in-line Industrial Spectrometer

This UV spectrometer covers a wide range of wavelengths from 190nm to 1000nm while still offering professional resolution and optimised sensitivity in the deep ultraviolet range.

With its dimension, the Qtube Spectrometer fits directly into process pipes and adjusts to the optical setup with or without fiber. The integrated electronics takes care of all sensor timings and provides quick results via a UART interface.

Main Features
Robust, compact design
High spectral resolution
Sensitivity optimized for UV
Low temperature dependency
Cost effective
2500 pixel linear array
Integration time: 100µs
Operating temperature: – 15°C to 60°C
UART interface

Specification Table

Water quality analysis
Agricultural measurements
Biomedical applications
Chemical research
Color measurements
Counterfeit detection
Environmental analysis
Health and life science
Light measurements
Process control and monitoring
OEM Integration
