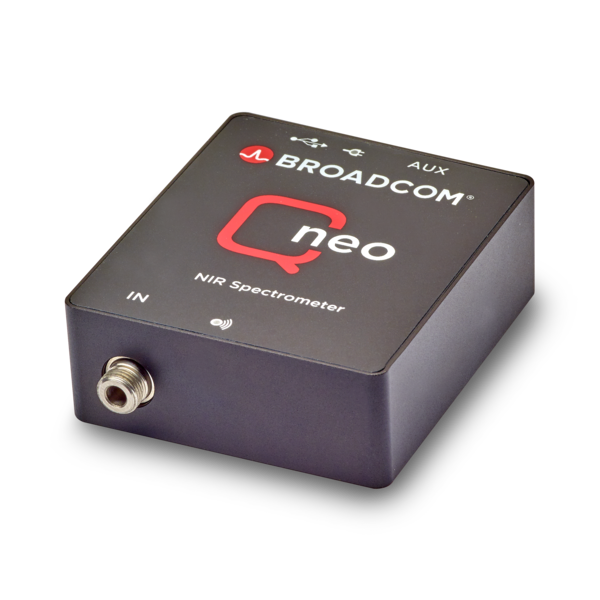

The Broadcom Qneo revolutionizes process analytics. On a footprint smaller than a credit card, the Qneo features a rugged setup that combines high resistance in industrial environments and high optical performance. This super compact near-infrared spectrometer covers a spectral range from 950 nm to 1700 nm.
In contrast to other NIR and IR Spectrometers the Qneo breaks size and cost barriers that prevented from high volume integration of NIR sensing into process control and handheld analyzers. Even without cooling, the Qneo reaches best performance in sensitivity.
There near infrared spectrometers are often used for quantitative and qualitative measurements, moisture content in liquids, solids and powders, irradiance measurements and optical plastic sorting
Main Features:
| Part Number | Product Configuration | Wavelength Range | Spectral Resolution |
|---|---|---|---|
| AFBR-S20N1N256 | Qneo with 256-pixel sensor | 950 nm to 1700 nm | 8 nm |
Specs Table
| Specifications | |
|---|---|
| Focal Length | 40 mm |
| Entrance slit | 30 μm: 256-pixel sensor version |
| Dynamic range | 12000:1 |
| SNR | Max. >10,000 |
| Numerical aperture | 0.18 |
| Stray light | <0.1% |
| Integration Time | 4 µs to 5 minutes |
| Detector | Uncooled 256-pixel InGaAs sensor |
| A/D converter | 16-bit |
| Calibration | Wavelength, sensitivity, nonlinearity, and multiple dark spectra stored in device |
| Transfer speed to PC | USB 2.0 high-speed |
| Optical interface | SMA connector |
| Digital interfaces | USB 2.0 with Type-C connector, SPI, UART |
| Dimensions (without SMA connector) | 60.0 mm × 50.0 mm × 19.0 mm |
| Weight | 70g |
| Power consumption | 5V DC, 30mA |
| PC operating system | Windows 7 and above |
Agricultural analysis
Food safety
Chemical analysis
Quality control
Petro-chemical analysis
Environmental analysis
Biomedical applications
Pharmaceutical analysis
Process control and monitoring
Quantitative and qualitative measurements
Moisture content in liquids, solids and powders
Irradiance measurements
Optical plastic sorting
