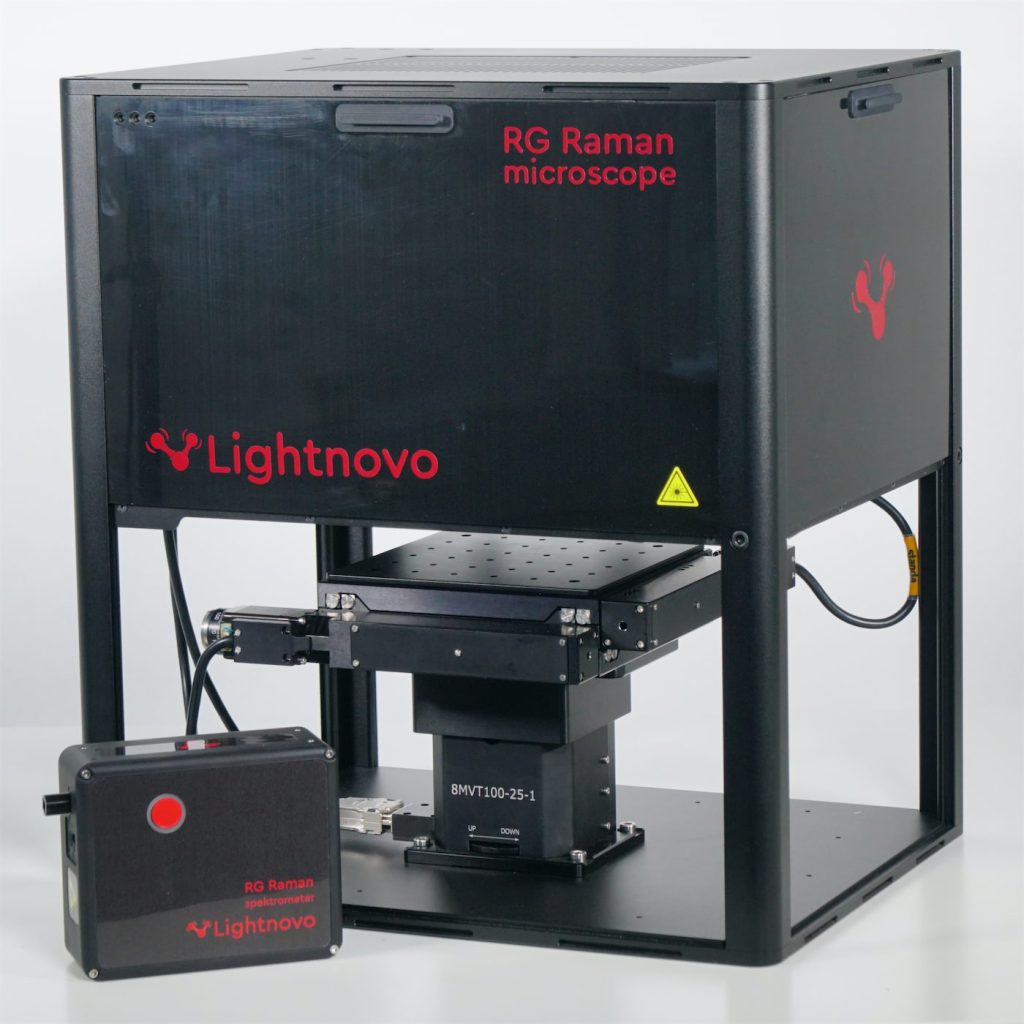

The Lightnovo RGRaman Microscope; perfectly suited to demanding Raman spectroscopy applications. These include applications that require high spectral and spatial resolution, long mapping range, extremely stable laser power, high sensitivity and broad spectral range (from low-frequency to high-frequency Raman shift).
LightNovo’s RG Raman microscope provides diffraction limited spatial resolution, and extremely high throughput. It is additionally equipped with transmitted visible light microscopy on a separate camera sensor. The RG Raman microscope can be used in upright microscopy and inverted microscopy configurations. To switch between modes simply flip the device from top to bottom!
This instrumental setup allows for both sample viewing using the optical microscopy capabilities, and performing measurements by Raman spectroscopy simultaneously.
The visual observation reveals morphological details of a sample (e.g. colour, size, shape). Whereas the spectroscopic measurement reveals information about the molecular structure and chemical composition of a sample.
Thanks to the modular design, the RG Raman microscope can be equipped with the RG Raman spectrometer or the miniRaman spectrometer.
When equipped with RG Raman spectrometer:
When equipped with miniRaman spectrometer
SPECIFICATIONS
| Feature Vs Model | RG Raman 405 Microscope | RG Raman 532 Microscope | RG Raman 633 Microscope | RG Raman 785 Microscope |
| Laser Wavelength | 405 nm | 532 nm | 633 nm | 785 nm |
| Power range on a sample | from 0.1 to 30 mW | from 0.1 to 150 mW | from 0.1 to 50 mW | from 0.1 to 100 mW |
| Spectral Range | 50-3700 cm-1 | 50-2500 cm-1 | ||
| Spectral Resolution | 3-5 cm-1 | 2-4 cm-1 | ||
| Signal-to-noise ratio | 1000:1 | 1200:1 | 900:1 | 900:1 |
| Lateral resolution | 280 nm | 320 nm | 500 nm | 600 nm |
| Axial resolution or confocality | 600 nm | 750 nm | 1000 nm | 1500 nm |
| White light microscopy | Reflected with simultaneous visualization of laser spot and Raman acquisition | |||
| Microscopy configuration | up-right and inverted | |||
| Mapping travel range in XYZ | 102 x 102 x 25 mm | |||
| Lateral step size | 500 nm | |||
| Axial step size | 500 nm | |||
| Physical dimensions (LxWxH) | 400 mm x 320 mm x 475 mm | |||
| Weight | 20 kg | |||
Surface Enhanced Raman Scattering
Materials science
Pharmaceuticals
Life science
Polymers
Nano-materials
Semiconductors
Cosmetics
Forensics
Art & museum
Geology
