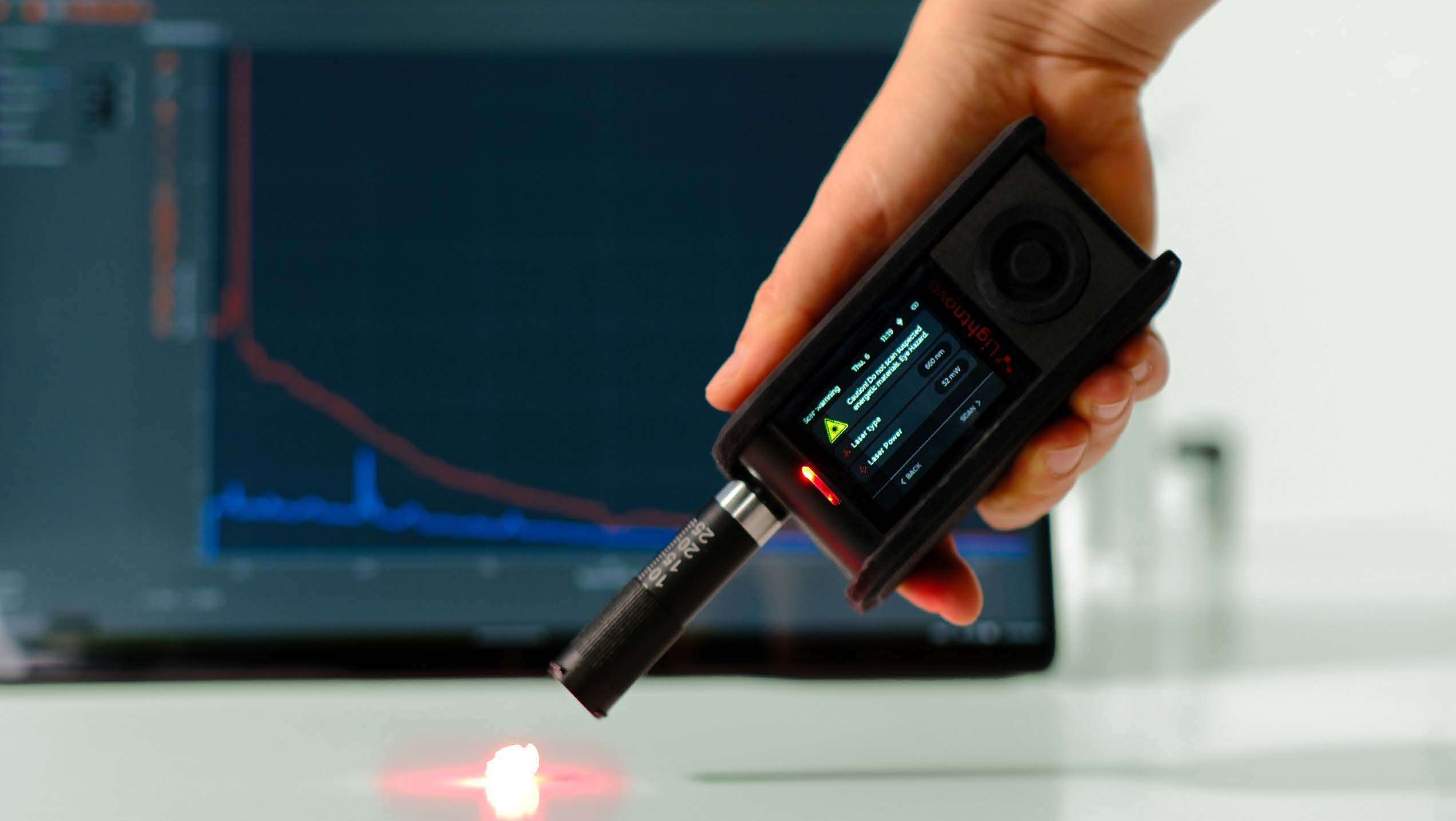

The LightNovo miniRaman Spectrometer is the World’s smallest Raman spectrometer.
With high sensitivity for the most sophisticated Raman applications, the miniRaman features a patented reference channel.
This technology allows for an automatic calibration of the unstabilised laser wavelength drift.
The spectrum from the sample is always corrected for Raman shift and Raman intensity. This allows for a continuous calibration of the device and, therefore, the results are fast and reliable. This feature makes miniRaman an ideal solution for materials identification and quantitative measurements.
The miniRaman measures only 112mm x 39mm x 34mm (LxWxH) and weighs 400g (200g when in an aluminium housing). The spectrometer can integrate up to two lasers with wavelengths 660 nm and 785 nm to extend measured spectral range. The 785nm laser covers the fingerprint region from 400-2700cm-1 and the 660nm laser extends the spectral range to 2700-4500cm-1 . Spectral resolution down to 7cm-1 can be achieved.
Main Features
Extended spectral range via dual lasers
Single 785nm or dual 785nm and 660nm laser
400-2700 cm-1 and 2700-4500cm-1 spectral range
Power at sample up to 150mW at 785nm, 32nm at 660nm
7-15cm-1 resolution
Signal to noise ratio 1000:1
PC (Windows 7, 10) and smartphone (Android)
SPECIFICATIONS
| Feature Versus Model | MiniRaman Standard M | MiniRaman Power M | MiniRaman SERS M | MiniRaman Power Dual M | MiniRaman Standard Dual M |
|---|---|---|---|---|---|
| Laser Wavelength | 785nm | 660 nm and 785 nm | |||
| Power on sample | 5-50 mW | 15-150 mW | 0,5-5 mW | 1-32 mW (660) 15-150 mW (785) |
1-32 mW (660) 5-50 mW (785) |
| Spectral Range | 400-2700 cm-1 | 2700-4500 cm-1 (660) 400-2700 cm-1 (785) |
|||
| Spectral Resolution | 7-15 cm-1 (slit size dependent; slit size can be customized) | ||||
| Signal-tonoise ratio at: | 500:1 | 1000:1 | 100:1 | 1000:1 800:1 |
500:1 800:1 |
| Physical dimensions | 112 mm x 39 mm x 34 mm (LxWxH) | ||||
| Weight | 400 g (optional 200g in aluminum housing) | ||||
Biosciences
Pharmaceuticals
Chemicals
Surface Enhanced Raman Scattering
Polymers
Nano-materials
Semiconductors
Forensics
Alcohol quality and counterfeit product detection
Cosmetics
Geology
Skin diagnostics
