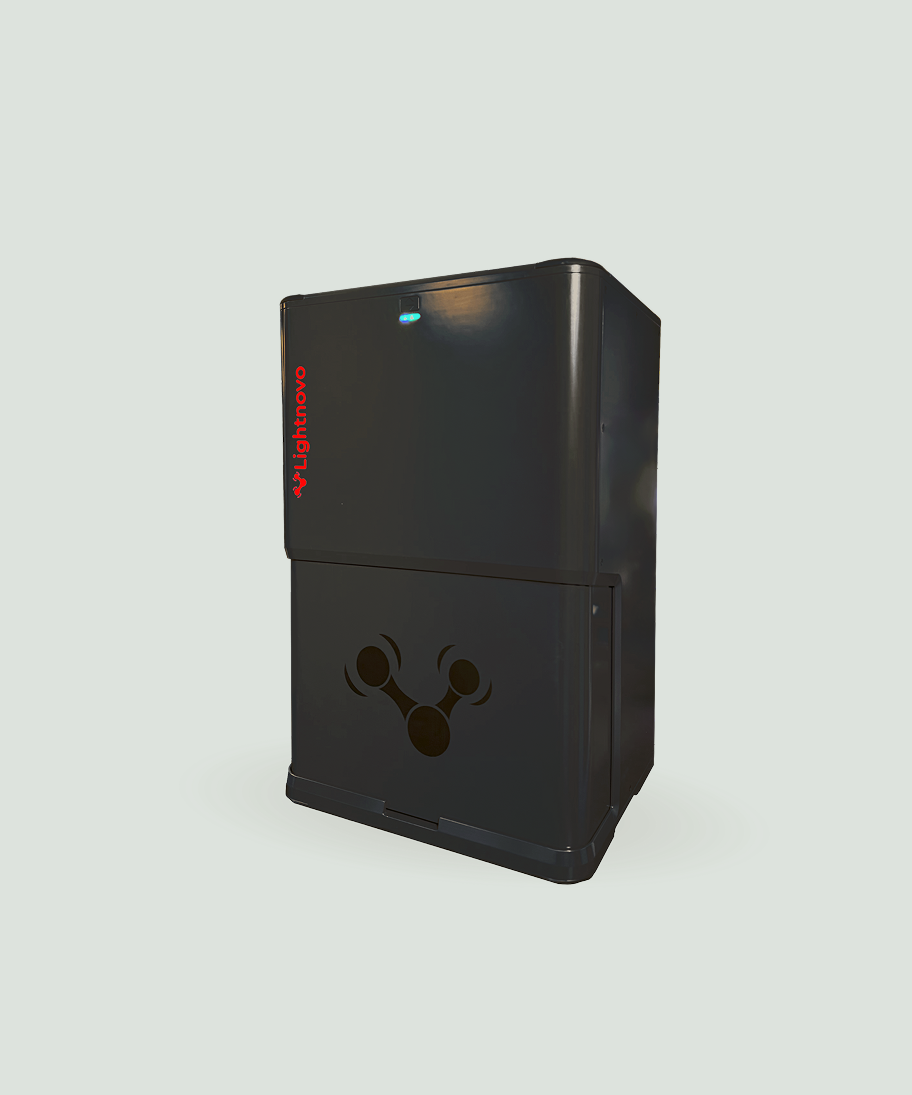

The RG Raman Microscope from Lightnovo is a high-performance solution for demanding Raman spectroscopy applications requiring high spectral and spatial resolution, broad spectral range, and exceptional laser stability.
Designed for flexibility and precision, this modular microscope delivers:
Dual Microscopy Modes – Upright and Inverted
With its unique flip design, the RG Raman Microscope easily switches between upright and inverted microscopy modes—no reassembly required.
Integrated Optical & Raman Imaging
Equipped with transmitted visible light microscopy on a separate camera sensor, the RG system allows simultaneous optical observation (color, size, morphology) and Raman spectroscopy (chemical and structural analysis).
Modular & Compatible
Thanks to its modular design, the RG microscope can be paired with either the RG Raman spectrometer or the compact miniRaman spectrometer, offering scalable performance for diverse research needs
Main Features:
When equipped with RG Raman spectrometer:
- Laser wavelength: 405nm, 562nm, 633nm, 785nm
- Power on a sample up to 150mW
- Spectral Range: up to 50-3700cm-1
- Spectral Resolution: 2-4cm-1
- Signal-to-noise ratio up to 1000:1
When equipped with miniRaman spectrometer
- Single 785nm or dual 660nm and 785nm laser
- Spectral range: 400-2700 cm-1 for 785nm laser and 2700-4500cm-1 for 660nm laser
- Power at sample up to 150mW at 785nm, 32nm at 660nm
- Spectral resolution 7-15cm-1
- Signal-to-noise ratio up to 1000:1
- Weight 20kg
