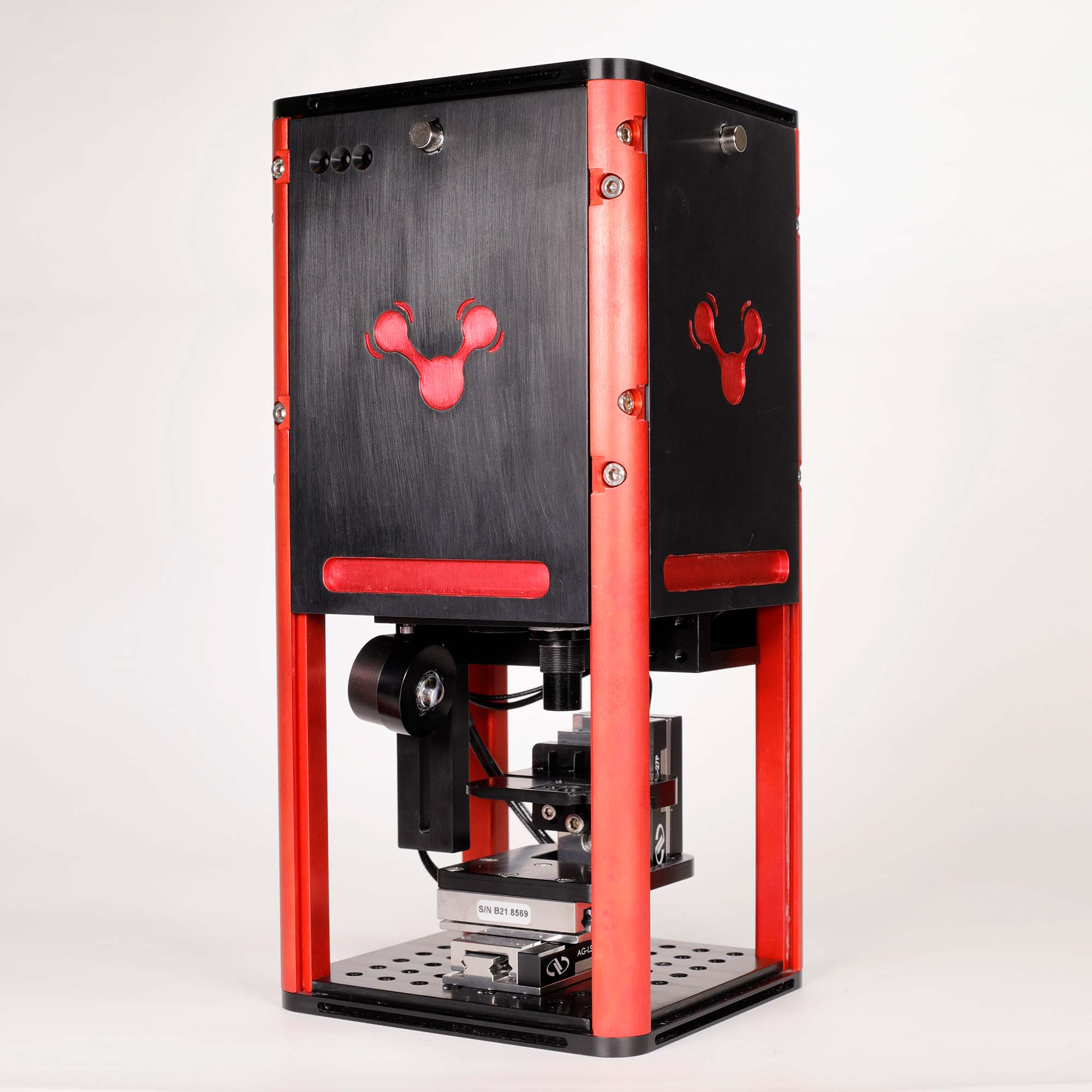

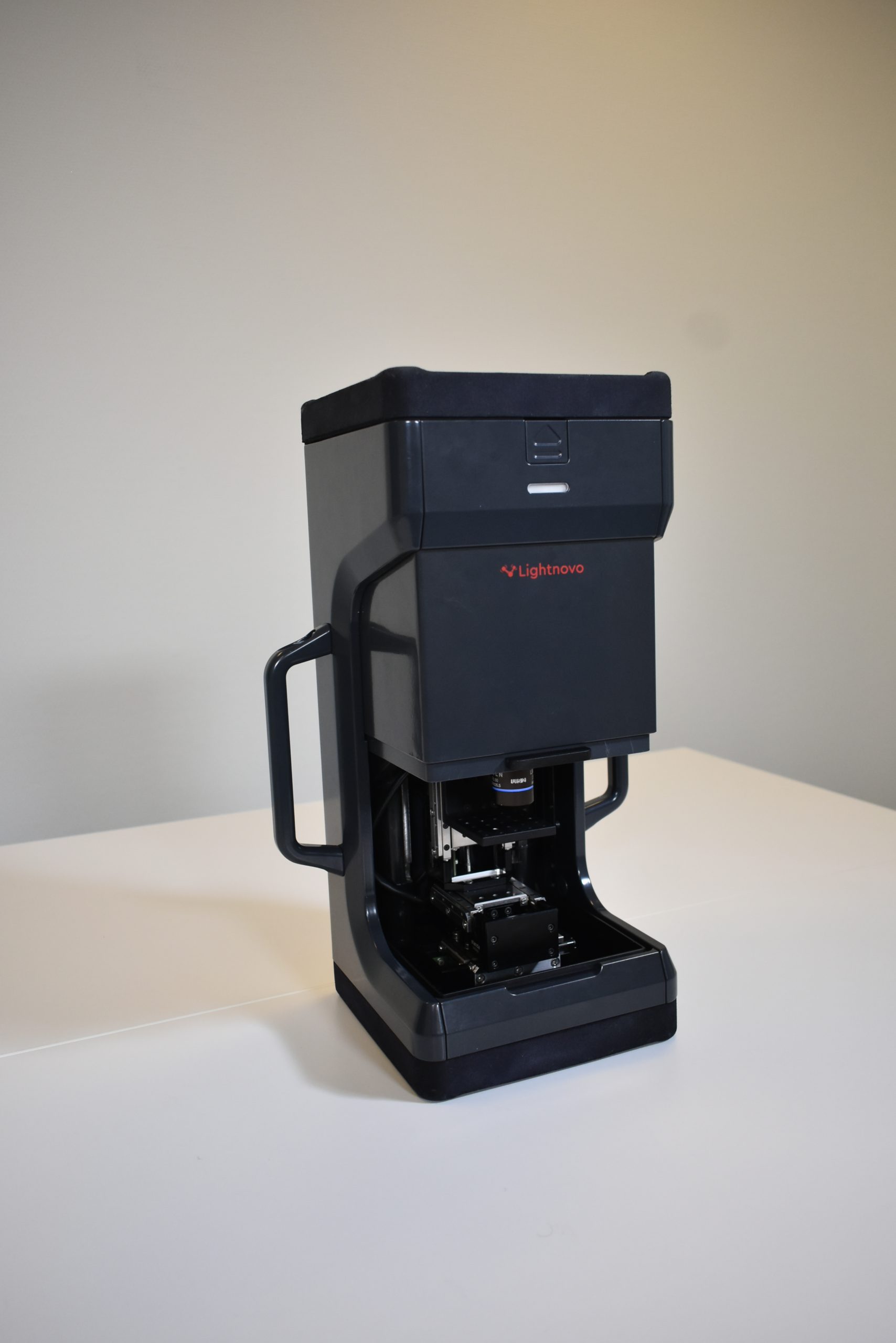

Lightnovo‘s miniRaman Microscope is the world smallest confocal Raman microscope for laser wavelengths 660nm and 785nm. With a footprint of only 12x13cm all while still providing diffraction limited spatial resolution, extremely high throughput and equipped with reflection, off-axis and transmittance white light microscopy.
The miniRaman microscope is based on Lightnovo’s miniRaman spectrometer, which performs Raman shift and Raman intensity calibration during every spectrum acquisition. This makes miniRaman microscope much less expensive than typical Raman microscopes with frequency stabilised lasers. The patented technology of the miniRaman microscope guarantees very high throughput, wavenumber accuracy and Raman intensity control via an in-built reference channel.
The miniRaman microscope technology has be developed for Raman microscopy in near IR range from laser source at wavelengths 660 and 785nm. This instrumental setup allows for both sample viewing using the optical microscopy capabilities and performing measurements by Raman spectroscopy simultaneously.The visual observation reveals morphological details of a sample (e.g. color, size, shape), whereas the spectroscopic measurement reveals information about the molecular structure and chemical composition of a sample.
The miniRaman microscope are availble in five models: Standard M, Power M, SERS M, Power Dual M and Standard Dual M.
Single 785nm or dual 660nm and 785nm laser
Spectral range: 400-2700 cm-1 for 785nm laser and 2700-4500cm-1 for 660nm laser
Power at sample up to 150mW at 785nm, 32nm at 660nm
Spectral resolution 7-15cm-1
Signal to noise ratio up to 1000:1
PC (Windows 7, 10) and smartphone (Android)
Weight 7kg
Specifications
| Feature Versus Model | MiniRaman Standard M | MiniRaman Power M | MiniRaman SERS M | MiniRaman Power Dual M | MiniRaman Standard Dual M |
|---|---|---|---|---|---|
| Laser Wavelength | 785 nm | 660 nm and 785 nm | |||
| Power Range on a Sample | 5-50 mW | 15-150 mW | 0,5-5 mW | 1-32 mW (660) 15-150 mW (785) | 1-32 mW (660) 5-50 mW (785) |
| Spectral Range | 400-2700 cm-1 | 2700-4500 cm-1 (660) 400-2700 cm-1 (785) |
|||
| Spectral Resolution | 7-15 cm-1 (slit size dependent; slit size can be customized) | ||||
| Signal-to-noise ratio | 500:1 | 1000:1 | 100:1 | 1000:1 800:1 |
500:1 800:1 |
| Lateral Resolution | 900 nm | 800 nm (660) 900 nm (785) |
|||
| Axial resolution or confocality | 3 µm | 2.5 µm (660) 3 µm (785) |
|||
| White light microscopy | Reflected with simultaneous visualisation of laser spot and Raman acquisition | ||||
| Microscopy configuration | upright and inverted | ||||
| Mapping travel range in XYZ | 25 x 25 x 25 mm | ||||
| Lateral step size | 500nm | ||||
| Axial step size | 500nm | ||||
| Physical dimensions | 120mm x 130mm x 280 mm (L x H x W) | ||||
| Weight | 7 kg | ||||
Surface Enhanced Raman Scattering
Materials science
Pharmaceuticals
Life science
Polymers
Nano-materials
Semiconductors
Cosmetics
Forensics
Art & museum
Geology
