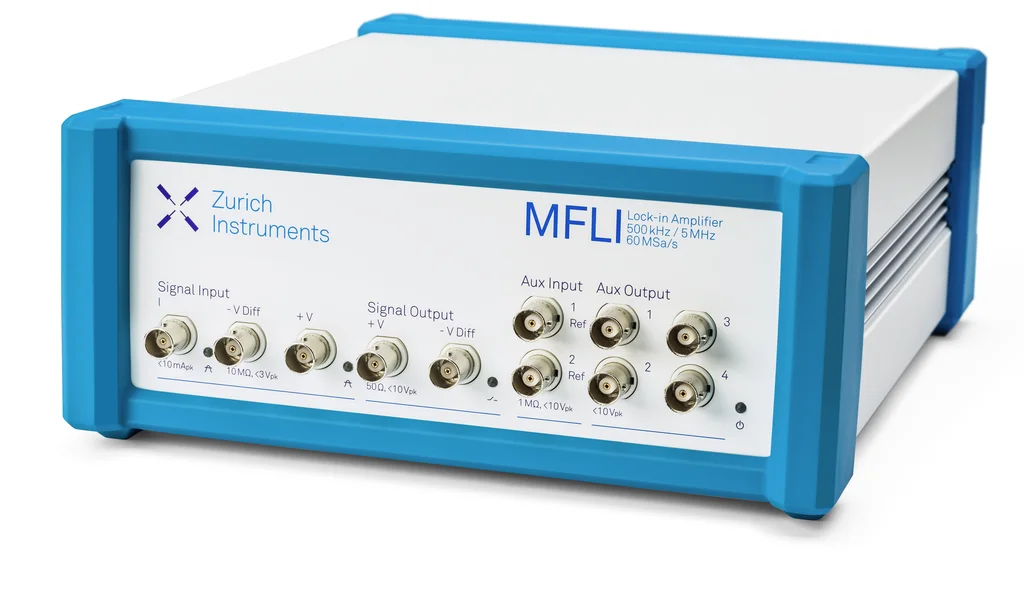

The MFLI 500kHz/5MHz Lock-in Amplifier from Zurich Instruments. A single-channel lock-in amplifier designed to operate at frequencies from DC up to 500kHz. The MFLI has embedded data and web servers and can be used with any device running a web browser without further software installations. Suitable across multiple Diagnostic applications.
The MFLI is a highly cost effective digital lock-in amplifier which is very easy to operate and possesses a powerful feature set. The system uses Zurich Instruments’ LabOne software, which includes a signal generator, oscilloscope, sweeper function and optimises operation of the system, offering easy development of APIs. The MFLI is fully field-upgradable with many useful performance enhancements, including a 5MHz maximum frequency extension.
General Specifications
| Storage Temperature | +5°C to +65°C |
|---|---|
| Storage relative humidity | < 95%, non-condensing |
| Operating temperature | +5°C to +40°C |
| Operating relative humidity | <90%, non-condensing |
| Specification temperature | +18°C to +28°C |
| Power consumption | <40W |
| DC power inlet | 12 V, 2 A Connector: Switchcraft 760BK, ID 2.5 mm, OD 5.5 mm |
| Power supply AC line | 100 – 240 V (±10%), 50/60 Hz |
| Line power fuse | 250 V, 2A. fast, 5x20mm, F 2A L250V |
| Dimensions including bumper | 28.3 x 23.2 x 10.2 cm 11.1 x 9.1 x 4.0 inch Rack mount on request |
| Weight including bumper | 3.8kg |
| Recommended calibration interval | 2 years (see sticker on back panel) |
| Warranty | 1 year, extendible |
Material Science, Sensing, Transport measurements, Noise characterisation, Quantum sensing
