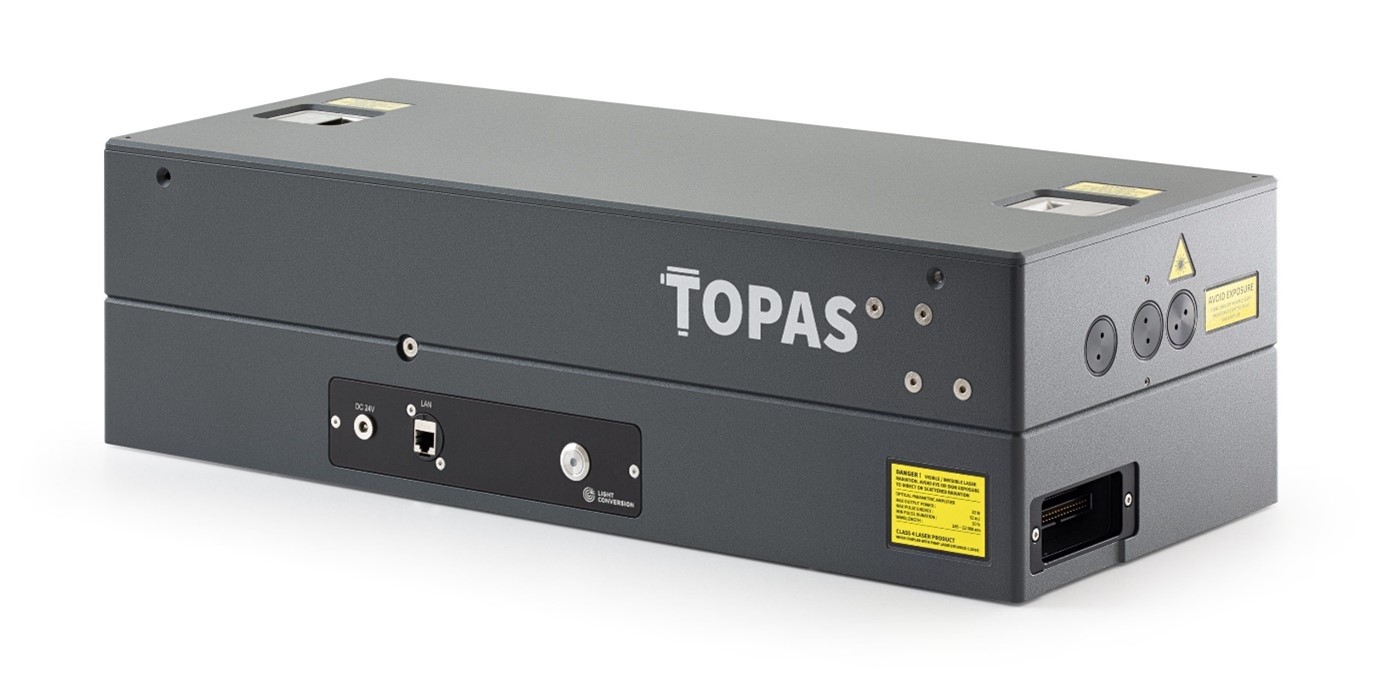

TOPAS optical parametric amplifiers (OPAs)

The Light Conversion TOPAS optical parametric amplifiers (OPAs). Paired with existing amplified Ti:Sapphire lasers (i.e. pumped at 800nm), the TOPAS will provide tunable femtosecond or picosecond pulses from the UV right up to the mid-IR with fully automated computer control.

Application Categories: Quantum & Nanotech / Medical & life Sciences / Research & Education / Pharmaceuticals

Description

Features

Applications

Datasheets

Description

Features

Product	Pump Pulse Energy	Pump Pulse Duration	Tuning Range	Extended Tuning Range	Output Pulse Duration	Upgrades	Special Features
TOPAS \| Prime	0.15 – 6 mJ	20 – 200 fs	1160 – 2600 nm	189 nm – 20 µm	30 – 150 fs	HE-STAGE	Motorized wavelength control, hands-free operation
TOPAS \| Prime-HE	2 – 60 mJ					N/A	High energy, high conversion efficiency
TOPAS \| Twins	0.3 – 6 mJ					HE-STAGE	Two independently tunable CEP- stable outputs
SHBC	0.3 – 5 mJ		≈ 400 nm	240 nm – 2.4 µm	1-5ps	TOPAS-SHBC-400	Narrow bandwidth, picosecond output, generated from broadband femtosecond pump pulses
TOPAS \| SHBC-400	0.2 – 2.5 mJ		480 – 2400 nm	240 nm – 2.4 µm	1-5ps	n/a
TOPAS \| PS-800	0.2 – 5 mJ	1 – 2 ps	1160 – 2600 nm	240 nm – 20 µm	0.7 – 2 ps	HE-Stage

WAVELENGTH EXTENSIONS AND UPGRADES

Product	Tuning Range	Features
HE-Stage	1160 – 2600 nm	High-energy upgrade for TOPAS-PRIME, TOPAS-TWINS, or TOPAS-PS-800 for 4 – 60 mJ pump
NIRUVIS	240 – 2600 nm	Motorized wavelength tuning, single housing
NIRUVIS-DUV-HE	189 – 2600 nm	High-energy version, broadest tuning range, motorized wavelength tuning, single housing
NIRUVIS-DUV	189 – 2600 nm	Broadest tuning range, motorized wavelength tuning, single housing
NIRUVIS-MW	240 – 2600 nm	Fully automated version, same output port for all the wavelength range, motorized wavelength tuning, single housing
NDFG	2600 nm – 20 µm	Noncolinear generator for background-free mid-IR pulses
External crystal stages	240 nm – 20 µm	Cost-efficient separate crystal stages (1, 2, or 3 depends on the tuning range)
SIG-SIG NDFG	4500 nm – 16 µm	Noncolinear generator for CEP-stable mid-IR pulses used with TOPAS-TWINS, CEP slow drift compensation-ready
