Quantel‘s Shrike diode-pumped pulsed 1.57 µm laser is capable of reaching an energy of 130 mJ at 1064 nm. Diode-pumped, the Shrike is powered by a simple 24 V power supply and integrated into an ultra-compact package.
Quantel‘s Shrike diode-pumped pulsed 1.57 µm laser is capable of reaching an energy of 130 mJ at 1064 nm. Diode-pumped, the Shrike is powered by a simple 24 V power supply and integrated into an ultra-compact package.

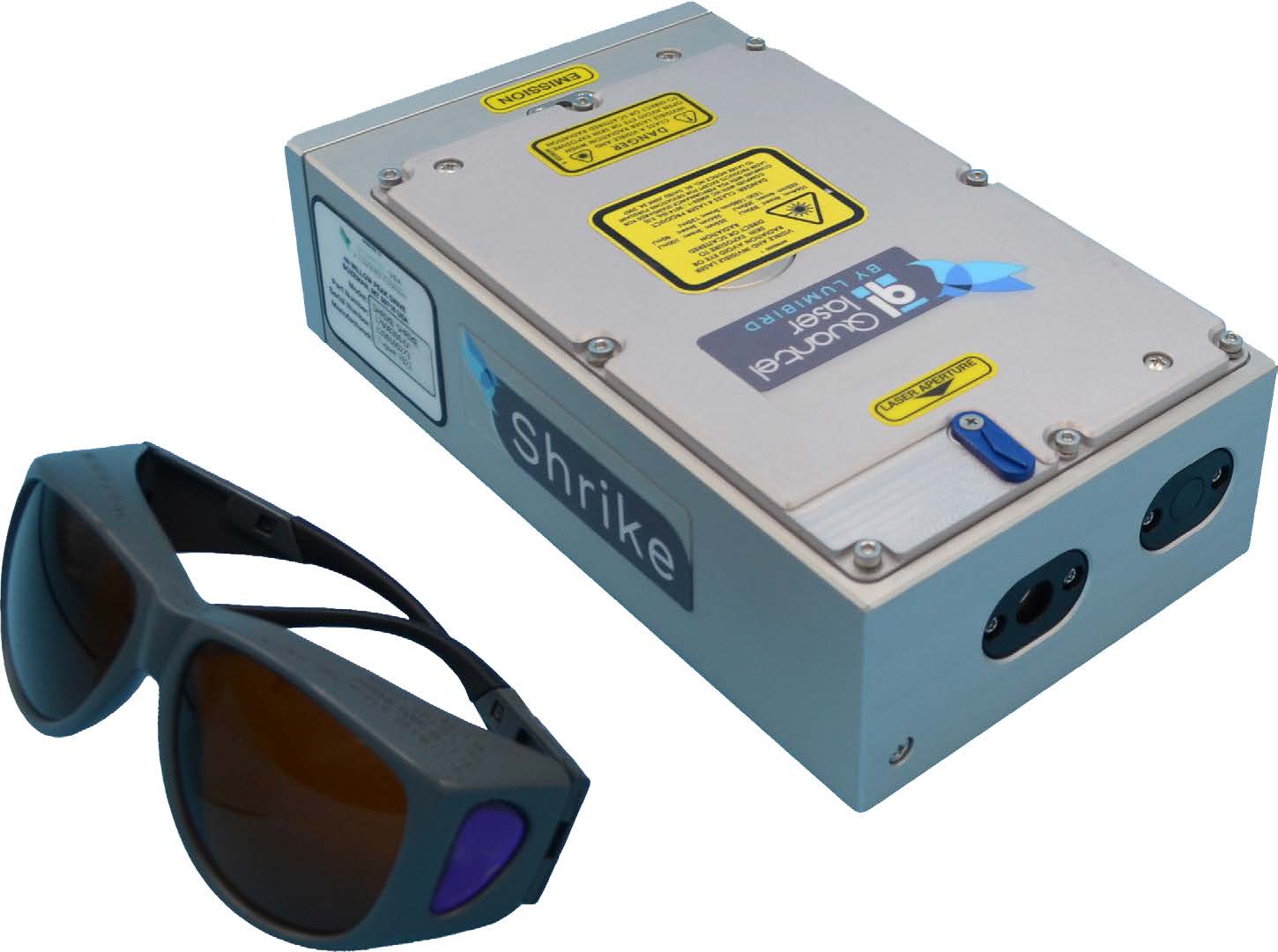

The Shrike is a diode-pumped Nd:YAG laser capable of reaching energies of up to 130 mJ per pulse. It is a complete integrated package (laser head and control electronics in a single box) requiring only a 24 V DC power supply.
Its compact size, its industrial control protocol and its sealed structure (IP66) and tested in shocks and vibrations (MIL-STD-810H) allow easy integration into all types of instruments, in the most hostile environments.
Combined with excellent optical specifications, its 2 types of resonators and its harmonic generation options make it an outstanding laser.
| Model | SHRIKE C-S4 | SHRIKE C-G4 | |
|---|---|---|---|
| Resonator type | Stable | GRM | |
| Repetition rate (Hz) | To 60 | 60 | |
| Energy per pulse (mJ) | 1064 nm | 130 | 100 |
| 532 nm | 65 | 60 | |
| 355 nm | 40 | 30 | |
| 266 nm | 10 | 10 | |
| Pulse duration (ns) (1) | 1064 nm | < 10 | < 7 |
| 532 nm | |||
| 355 nm | |||
| 266 nm | |||
| Beam diameter (mm) (2) | 1064 nm | < 5 | < 5 |
| Beam divergence (mrad) (3) | 1064 nm | < 7 | < 1 |
| 532 nm | < 6 | ||
| 355 nm | < 6 | ||
| 266 nm | < 4 |
(1) Measured at FWHM with fast photodiode and 1 GHz oscilloscope
(2) D4σ at output windo
(3) D4σ, full angle
Ranging
Pumping
Material Processing
Laser Ultrasonic
Ablation
LIBS
LIDAR
Shockwave generation
Photochemistry
