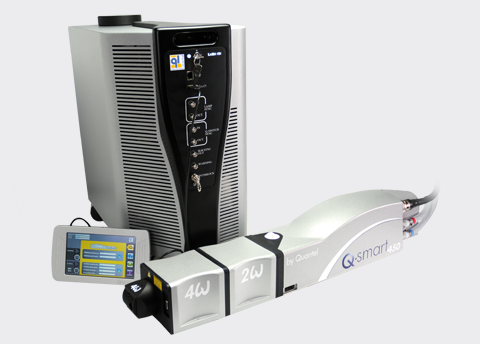

The Q Smart Series Flashlamp-Pumped Nd:YAG 450 and 850 are the benchmark for Lumibird‘s lasers. Controlled by its Q-touch touchscreen remote control, these compact, high-energy laser offers unique, innovative features and excellent cost-effectiveness. Its modularity, excellent beam quality and numerous options make this laser the ideal partner for all your applications.
The Q-smart family includes the most flexible pulsed Nd:YAG laser systems in the world. Monolithic block construction and compact design features provides superior beam geometry in a compact package. The intuitive Q-touch screen interface makes this the smart choice for easy operation. •Quick and easy access to 1064, 532, 355, 266 & 213 nm
•Repetition rates up to 20Hz
•Lightweight and compact design
•Quick-connect cables and cooling lines
•Innovative, hands-off phase matching
•Intuitive touch screen interface
•No installation required
•100 million shot flashlamp lifetime
•2-year warranty
•New : SLM (Single Longitudinal Mode)
•Highest energy at 532 & 355 nm with a single doubling crystal
| Q-smart 450 | |||||
|---|---|---|---|---|---|
| Repetition rate (Hz) | 10 | 10-SLM | 20 | 20-SLM | |
| Energy per pulse (mJ) | 1064 nm | 450 | 370 | 400 | 330 |
| 532 nm | 220 | 150 | 200 | 135 | |
| 355 nm | 130 | 75 | 120 | 70 | |
| 266 nm | 60 | 35 | 50 | 30 | |
| 213 nm | 10 | On request | 8 | On request | |
| Pulse duration (ns) | 1064 nm | ~ 6 | |||
| Beam divergence (mrad) | 1064 nm | < 0.5 | |||
| Dimensions in mm (H x L x W) |
Laser head | 147 x 526 x 125 | |||
| Harmonic modules | 99 x 123 x 125 | ||||
| Power supply | 513 x 507 x 283 | ||||
| Weight in kg | Laser head | 7 | |||
| Power supply | 27 | ||||
| Q-smart 850 | |||
|---|---|---|---|
| Repetition rate (Hz) | 10 | 10-SLM | |
| Energy per pulse (mJ) | 1064 nm | 850 | 700 |
| 532 nm | 430 | 290 / 340 (1) | |
| 355 nm | 230 | 135 | |
| 266 nm | 100 | 60 | |
| 213 nm | 20 | on request | |
| Pulse duration (ns) | 1064 nm | ~ 6 | |
| Beam divergence (mrad) | 1064 nm | < 0.5 | |
| Dimensions in mm (H x L x W) |
Laser head | 147 x 526 x 125 | See scheme |
| Harmonic modules | 99 x 123 x 125 | ||
| Power supply | 513 x 507 x 283 | ||
| Weight in kg | Laser head | 7 | |
| Power supply | 27 | ||
| Q-smart 1200 | Q-smart 1500 | Q-smart 2300 | ||||
|---|---|---|---|---|---|---|
| Repetition rate (Hz) | 10 | 20 | 10 | 20 | 10 | |
| Energy per pulse (mJ) | 1064 nm | 1200 | 1000 | 1500 | 1400 | 2300 |
| 532 nm | 575 / 650 (1) | 480 / 540 (1) | 750 / 850 (1) | 660 / 750 (1) | 1150 / 1300 (1) | |
| 355 nm | 280 / 350 (2) |
220 / 270 (2) | 400 / 520 (2) | 360 / 460 (2) |
620 / 850 (2) | |
| 266 nm | 110 | 80 | 130 | 100 | 200 | |
| Pulse duration (ns) (3) | 1064 nm | 6 – 10 | ||||
| Beam diameter (mm) (4) | 1064 nm | ≤ 10 | ≤ 13 | |||
| Beam divergence (mrad) (5) | 1064 nm | ≤ 0.5 | ||||
| M² (6) | 1064 nm | ≤ 2 | ||||
| Spatial profile @ 1064 nm (7) (fit to Gaussian) | Near field (8) | ≥ 0.7 | ||||
| Far field (9) | ≥ 0.9 | |||||
| Polarization ratio (%) (10) | 1064 nm | ≥ 90 | ≥ 80 | |||
(1) 532 nm high energy version
(2) 355 nm high energy version
(3) Measured at FWHM with fast photodiode and 1 GHz oscilloscope
(4) At the output of the laser
(5) Full angle, at 1/e² of the peak
(6) At 1/e² of the peak, measured by Spricon LBA FWB
(7) Least square fit to Gaussian (perfect fit = 1)
(8) Measured at 1 m from laser output
(9) Measured at focal plane of a 2 m focus lens
(10) Polarization is horizontal @ 1064, 355 & 266 nm and vertical @ 532 nm
Ablation
Flash photolysis
Holography
LIBS
LIDAR
Cleaning
Spectroscopy
Photo acoustic imaging
OPO pumping
etc.
