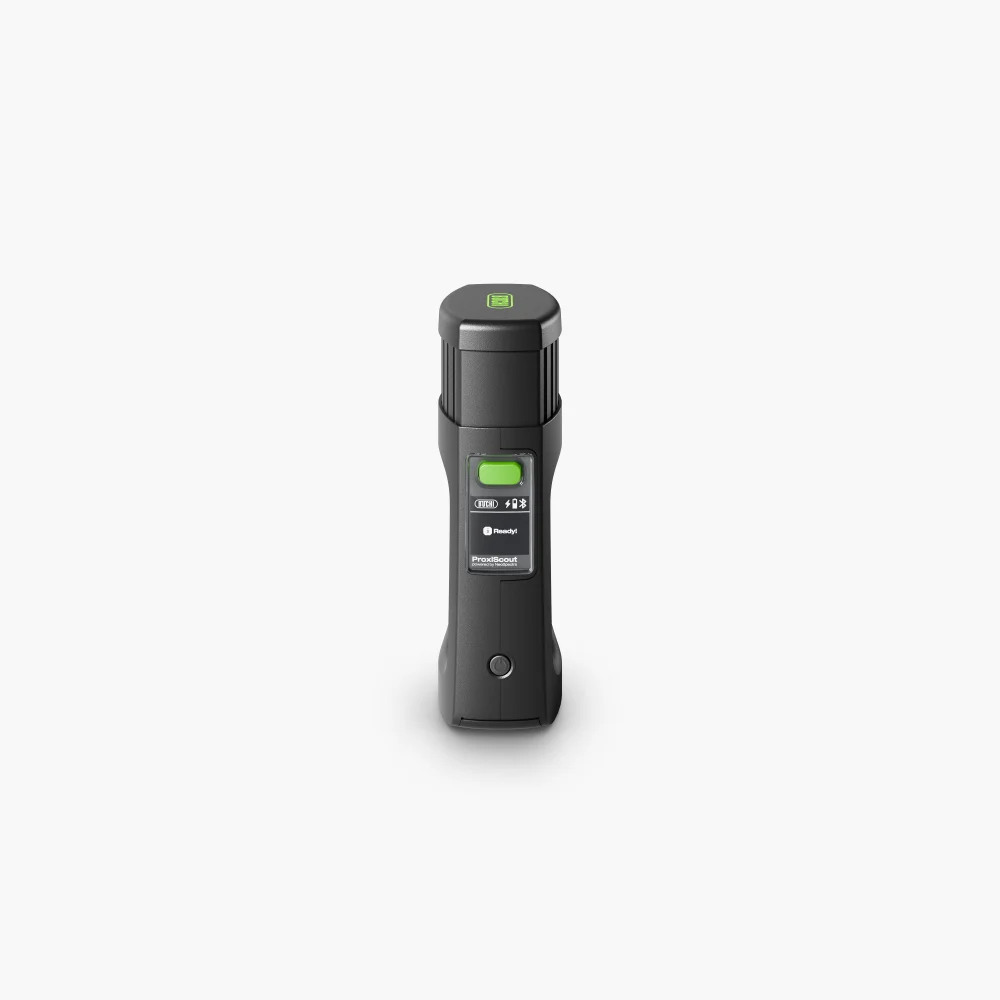

ProxiScout™ is a rugged, portable NIR spectrometer designed to empower field operators to perform rapid, reliable in-field material analysis—whether to determine the composition of raw materials or to verify their conformity and consistency on the spot. Designed for ease of use and seamless integration across workflows, Instant results are available through the mobile app, even when offline, empowering you with lab-grade insights wherever you are.
Housed in a rugged IP65 rated enclosre, with the ProxiScout scanner you can unlock the power of NIR analysis anywhere, anytime. Accurately measure, protein, oil, moisture and more in seconds. In a world where data-driven decisions are crucial, ProxiScout scanner and it’s accessories emerge as the ultimate tool for professionals seeking rapid material analysis solutions outside the confines of a laboratory to make informed decisions swiftly and accurately. With a broad spectral range from 1350-2500nm and a large sampling area, the scanner povides accurate measurements on a wide array of samples at the point of measurement.
The device seamlessly interfaces with an integrated suite of software solutions for easy data collection and reporting from anywhere. Select from thousands of calibration models, subscribe to the ones that best suit your needs on the ProxiScout Labstore. Download models on Scan App to either your phone or tablet and connect it to your Buchi device to perform analysis when off line. Bluetooth connection and long battery life that provides >1000scans for all day use make the scanner the most versatile analyser on the market.
Handheld rugged design with IP65 rating for use in field and factory environments
Large selection of calibration models available in ProxiScout LabStore
Bluetooth connection and long battery life for easy on-site operation
Large collection area for reliable results from non-homogeneous materials
Built in screen for monitoring device status and measurement
Analyse and see results in seconds on any mobile device
Wide spectral range for accurate results for a broad range of quality parameters
| Technical Specifications |
| Wavelength Range |
1,350-2,550 nm (7,400-4,00 cm) |
| Resolution at λ = 1,500 nm, FWHM criterion |
16 nm (66.6 cm) |
| Typical SNR (nms) Scan time = 2s, λ = 2,350 nm |
2,000:1 |
| Sample Coverage (Diameter of Collected Light Beam) |
~10mm |
| General Specifications |
| Dimensions |
178 x 91 x 62 mm |
| Weight |
1 kg |
| Operating Temperature |
-5: 40ºC |
| Ingress Protection Rating |
IP65 |
| Battery Type |
2x Rechargeable 18,650 Batteries, User Replaceable |
| Operating Battery Life (2 Second Scans) |
800 Scans |
| Battery Charge Time (1A Charging Current) |
6 Hours On Fast Charging to Reach 100% |
| Bulb Lifetime |
<10,000 hrs |
| Wireless Connectivity |
Bluetooth V4.2 BLE |
| Charging Port |
USB-C |
