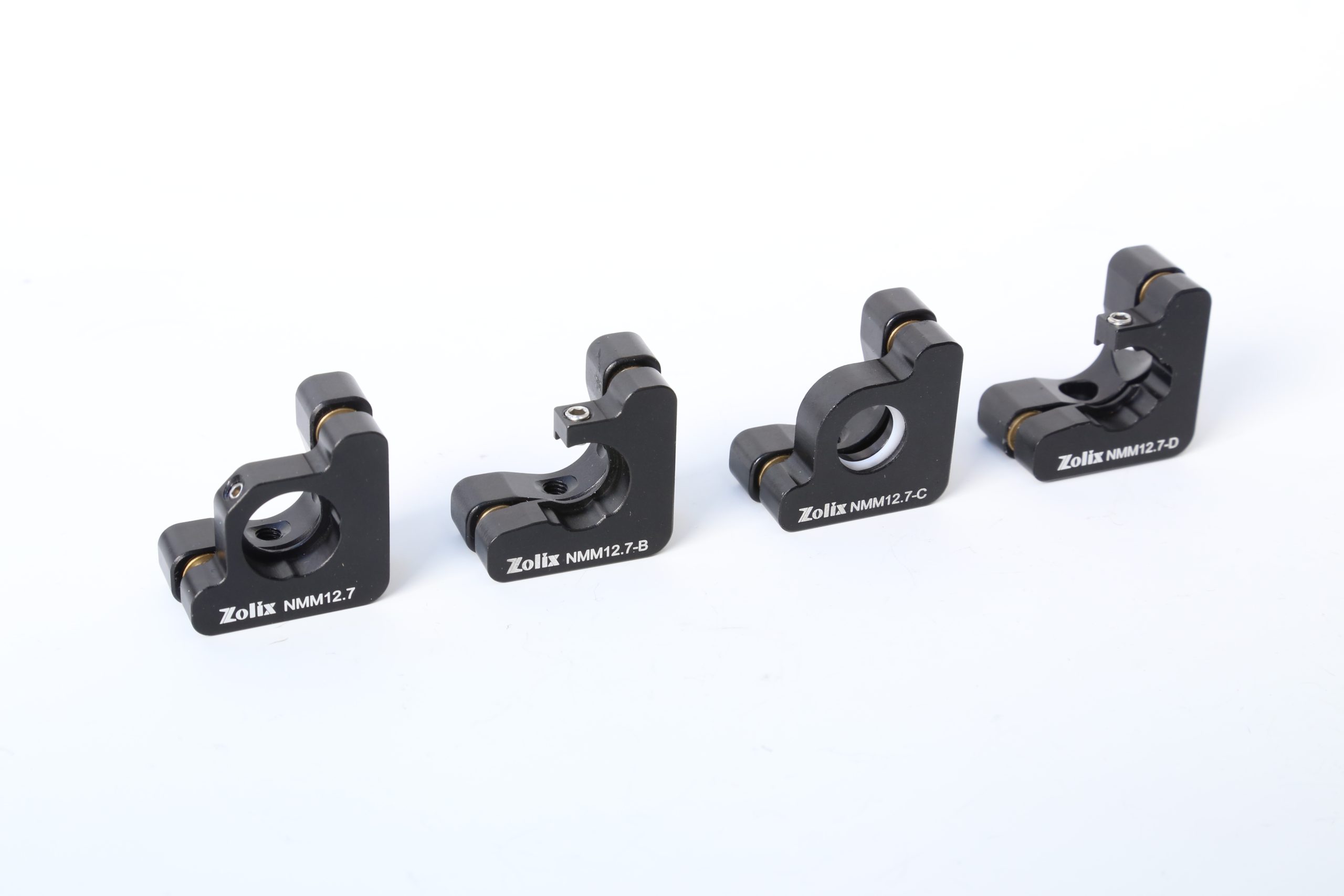

Zolix‘s NMM Series Kinematic Mirror Mount for small, round optics. This series comes in either 28.5mm or 22mm profile dimensions.
The NMM series is well-suited for applications where space is limited, due to its compact design and small form factor.
Its high sensitivity and easy-adjustment features make it ideal for setups requiring precise control over optical components.
| MODEL | NMM12.7 | NMM12.7-B | NMM12.7-C | NMM12.7-D |
|---|---|---|---|---|
| Optic Size (mm) | ø12.5/ø12.7 | |||
| Optic Edge Thickness (mm) | 3~5 | |||
| Angular Range (°) | ±3 | |||
| Clear Aperture (mm) | ø11 | ø11 | ø11 | ø7/ø11 |
| Optical Axis Height (mm) | 14 | |||
| Resolution: Angular Adjustment Per Revolution (°) | ≈0.75 | |||
| Main Body Material and Surface Treatment | Black Adonised Aluminium Alloy | |||
| Thickness of the Fixed Plate (mm) | 8 | 8 | 8 | 9 |
| Number of Pulling Springs | 4 | 4 | 4 | 3 |
| Mounting Hole | M4 | M4 | M4 | M4,ø6 Counter Bore |
| Net Weight (g) | 20 | |||
| MODEL | NMM8m | NMM10m | NMM12.7m |
|---|---|---|---|
| Optic Size (mm) | ø8 | ø10 | ø12.5/ø12.7 |
| Optic Edge Thickness (mm) | 2~4 | 2~4 | 2~4 |
| Angular Range (°) | ±3 | ||
| Clear Aperture (mm) | ø7 | ø9 | ø11.7 |
| Optical Axis Height (mm) | 10 | ||
| Resolution: Angular Adjustment per Revolution (°) | ≈0.975 | ||
| Main Body Material and Surface Treatment | Black Adonised Aluminium Alloy | ||
| Thickness of The Fixed Plate (mm) | 6 | ||
| Number of Pulling Springs | 4 | ||
| Mounting Hole | M4 | ||
| Net Weight (g) | 10 | ||
