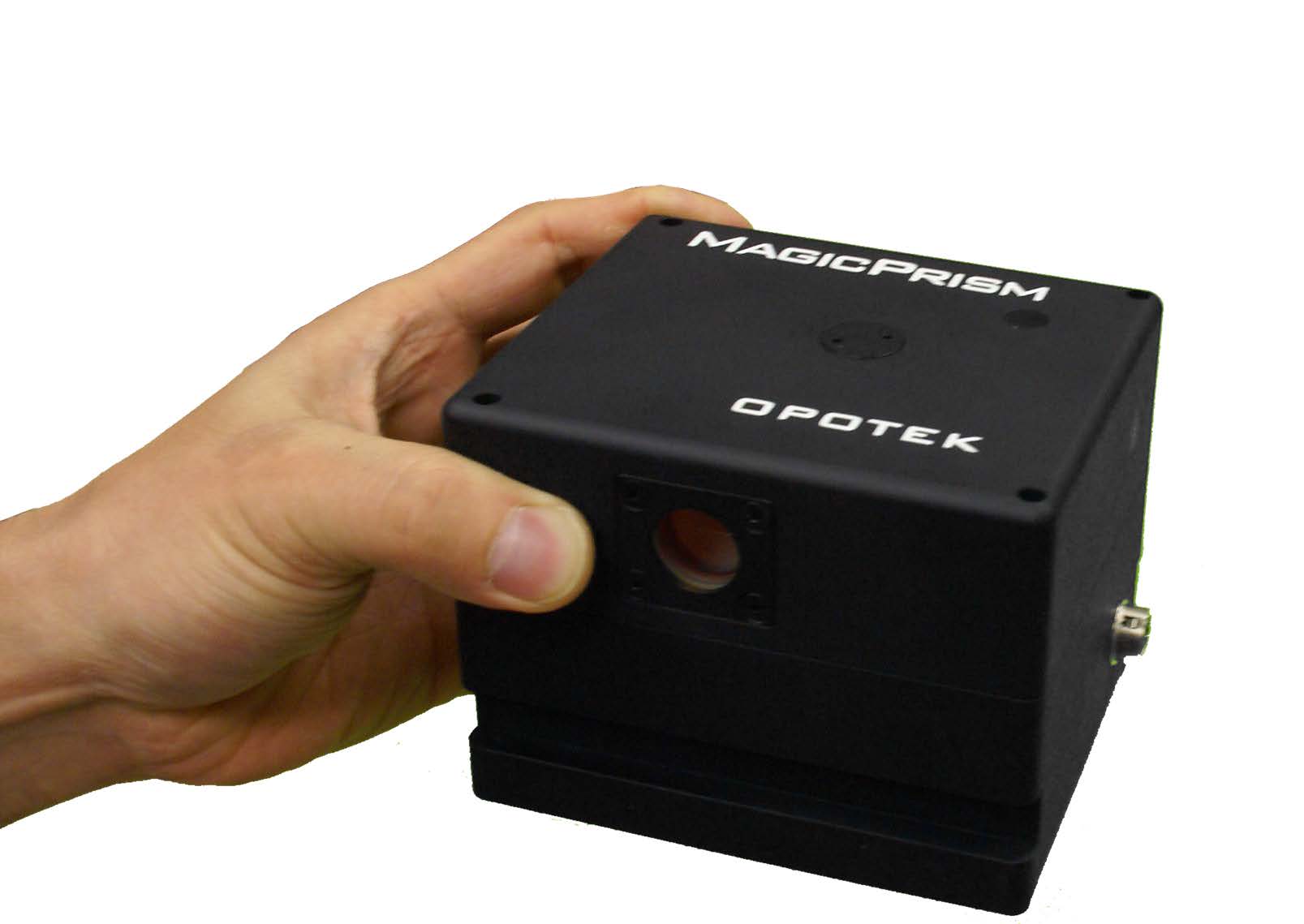

Opotek‘s MagicPRISM Tunable OPO Lasers are compact modules based on Opotek’s patented ring-cavity oscillator technology.
The MagicPRISM offers as high as 40% conversion efficiency, making this a cost-effective solution for turning a fixed wavelength Nd:YAG laser into a tunable laser.
Offers wavelength ranges covering the VIS to NIR.
The MagicPRISM module utilizes patented optical parametric oscillator (OPO) technology to transform the end-user’s fixed wavelength Nd:YAG laser into a tunable laser system that covers a broad range in the visible (VIS) and near infrared (NIR) regions. The compact, motorized module converts second or third harmonic Nd:YAG laser light with an efficiency as high as forty percent.
The MagicPRISM features computer controlled tuning via control software/software development kit (SDK). Customers will require the alignment kit (AK) or Qsmart adapter (QSA) for alignment/mounting.
| OPO Specifications | MagicPRISM VIS Series | MagicPRISM NIR Series | ||
|---|---|---|---|---|
| MP 30 | MP 30ID | MP 20 | MP 20ID | |
| Wavelength Range (nm) | 410-680 | 410-680 & 720-1200 | 690-950 | 690-950 & 1200-1700 |
| Peak Conversion Efficiency (&) | 40 | 38 | 40 | |
| Max OPO Energy (mJ) | Up to 45 | Up to 90 | ||
| Linewidth (cm-1) | 5-80 | 30-100 | ||
| Tuning Resolution | Linewidth Limited | Linewidth Limited | ||
| Beam Divergence (mrad) | 10-15 | 10-15 | ||
| Signal/Idler Polarisation | Vertical | Vertical | ||
| PUMP LASER REQUIREMENTS | ||||
| OPO Pump Wavelength (nm) | 355 | 532 | ||
| Min/Max OPO Pump Pulse Energy (mJ) | 90-110 | 130-220 | ||
| Pulse duration (ns) | 5-10 | |||
| Beam Diameter (mm) | 5-6 | |||
| Beam Divergence (mrad) | <1 | |||
| Polarisation | Linear | |||
| Beam Profile | Flat Top With no Hot Spots | |||
| DIMENSIONS (All Systems) | OPERATING REQUIREMENTS (All OPO Modules | |||
| OPO Module (L x W x H; Inches [cm]) | 4.4 [11.2] x 3.8 [9.7] x 3.4 [8.6] | Pump Laser | See Requirements Above | |
| Electronics Box (L x W x H; Inches [cm]) | 8.7 [22.1] x 6.1 [15.6] x 3.1 [7.9] | Temperature | 64-82°F [18-28°C] | |
| OPO Module Weight (Lbs [kg]) | 3.6 lbs [1.6 kg] | Power | 100-240 VAC, 50/60 Hz, Single Phase 100W | |
| Electronics Box Weight (lbs [kg]) | 5 lbs [2.3 kg] | |||
Photoacoustic Imaging
Spectroscopy
Lidar
