Part of Lasnix‘s expanded lineup of IR sept attenuators. The Model 801 IR-VIS Neural Density Attenuator is a compact model with 500nm Vis to 15µm IR attenuation.
The 801 features 4 ND filters with 0.5, 1, 2 and 3 optical densities.
Part of Lasnix‘s expanded lineup of IR sept attenuators. The Model 801 IR-VIS Neural Density Attenuator is a compact model with 500nm Vis to 15µm IR attenuation.
The 801 features 4 ND filters with 0.5, 1, 2 and 3 optical densities.
The 801 features
IR-VIS Neutral Density is based on proprietary free-standing metal grid technology with no substrate,

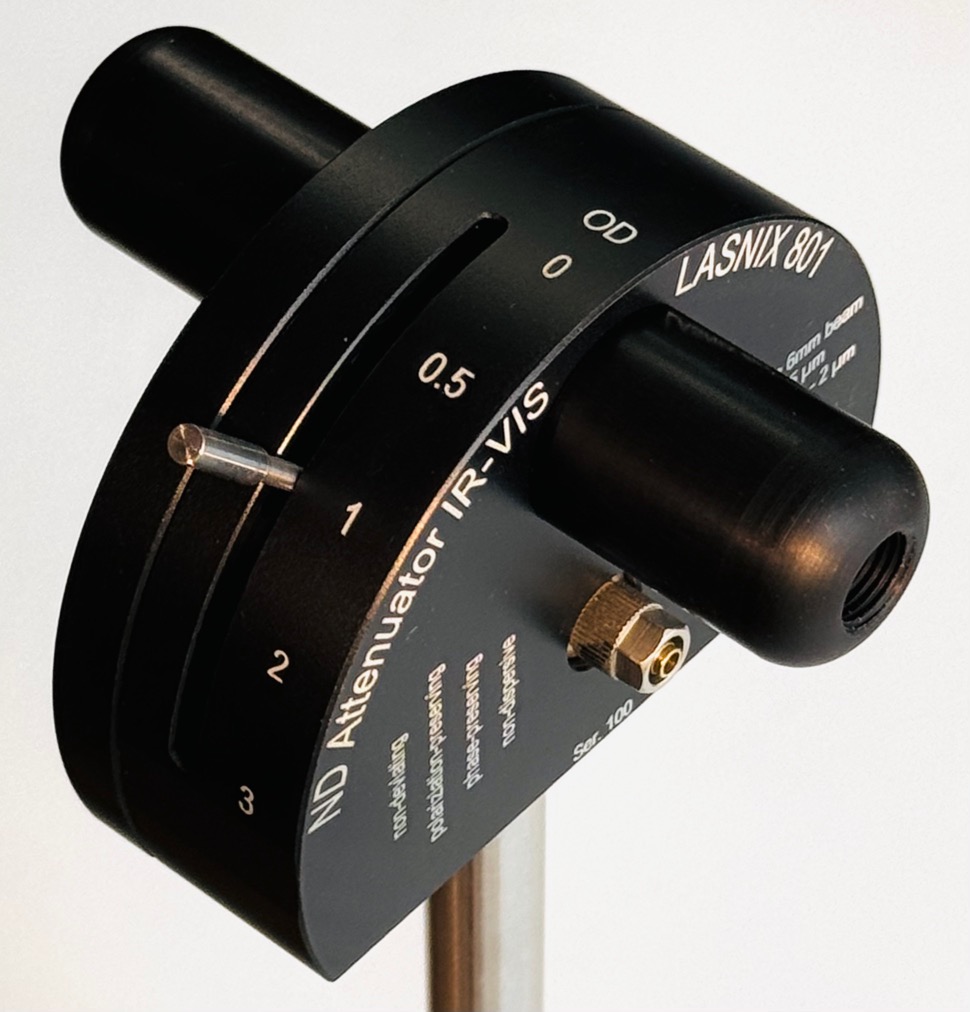

LASNIX MOD. 801 ND Attenuator
| VIS | NIR | MIR | ||||
|---|---|---|---|---|---|---|
| 1/e^2 Width | 500nm | 550nm | 600nm | 0.7-1µm | 1-2µm | 2-15µm |
| ≥6mm | 6W | 9W | 15W | 20W | 40W | 100W |
| 3mm | 3W | 4W | 7W | 10W | 20W | 50W |
| 2mm | 2W | 3W | 5W | 6W | 13W | 30W |
| 1mm | 1W | 1.5W | 2W | 3W | 6W | 15W |
Precise Level Setting
Mode Analytics
Detector Calibration
Nonlinear Interaction Studies
