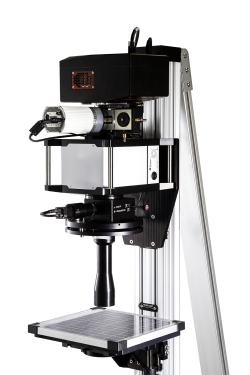

The Grand-EOS Global Hyperspectral Wide-Field Camera platform combines a hyperspectral microscopy system with a wide-field hyperspectral imaging platform, giving access to micro and macro modes on a spectral scale covering 400 nm to 1000 nm for the VIS version and 900-1620nm for the SWIR version.
The Grand-EOS provides a non-polarized wavelength selection with high throughput and efficiency. This is made possible by Photon etc.’s patented filtering technology based on volume Bragg grating.
Grand-EOS generates a hyperspectral data cube with spatial information along the X-Y axes and spectral information along the Z-axis.
Photon etc.’s global-imaging technology extracts a data-cube from a handful of monochromatic images without image reconstruction.
The field of view covered can be adjusted depending on the application and sample size. Grand-EOS is designed for reflectance, transmittance and luminescence imaging and is well-suited for both fundamental research and industrial applications.
| GRAND-EOS | |||
|---|---|---|---|
| 400-1620nm | |||
| V-EOS | S-EOS 1.7 | S-EOS 2.5 | |
| Spectral Range | 400-1000nm | 900-1620m | 900-2500 |
| Spectral Resolution (FWHM) | <2nm | <4nm | <5nm |
| Camera | sCMOS | Photon etc’s InGaAs camera (ZephIR™ 1.7 or Alizé™ 1.7) | Photon etc’s MCT camera (ZephIR™ 2.5) |
| Wavelength Absolute Accuracy | FWHM/8 | ||
| Spectral Channels | Continuously tunable | ||
| Entrance Slit Size | No slit / Full field of view measured for each wavelength | ||
| Exposure Control | PHySpec™ Software controlled | ||
| Standard Field of View (customizable) | 160 mm x 160 mm, 20 mm x 20 mm, other fields of view available upon request | ||
| Preprocessing | Image stabilization, spatial filtering, statistical tools, spectrum extraction, data normalization, spectral calibration | ||
| Hyperspectral Data Format | HDF5, FITS | ||
| Software | PC (Windows10 – 64-bits) with PHySpec™ control and analysis software (computer included) | ||
| Dimensions ( L x W x H ) | ≈ 150 cm x 85 cm x 82 cm | ||
| Weight | ≈ 80 kg | ||
| Power Requirement | t 120 VAC / 12 A / 60 Hz 230 VAC / 12 A / 50 Hz | ||
| OPTIONS & ACCESSORIES | |||
| Absolute photometric calibration | |||
| Laser excitation | |||
| White light illumination | |||
| Micro-imaging modality: 5X, 10X | |||
| Constant over the spectral range | |||
| Champs Model, Focal Plane Array, FPA size, Pixel Size, FPA operating temperature, Drak current, typical readout noise, Digitizations, Quantum Efficiency et Computer Interface retirés pour simplifier les datasheets et éviter le travail en double lors du changement des specs. Nouvelle mise en page calquée sur IMA/RIMA/CIMA | |||
