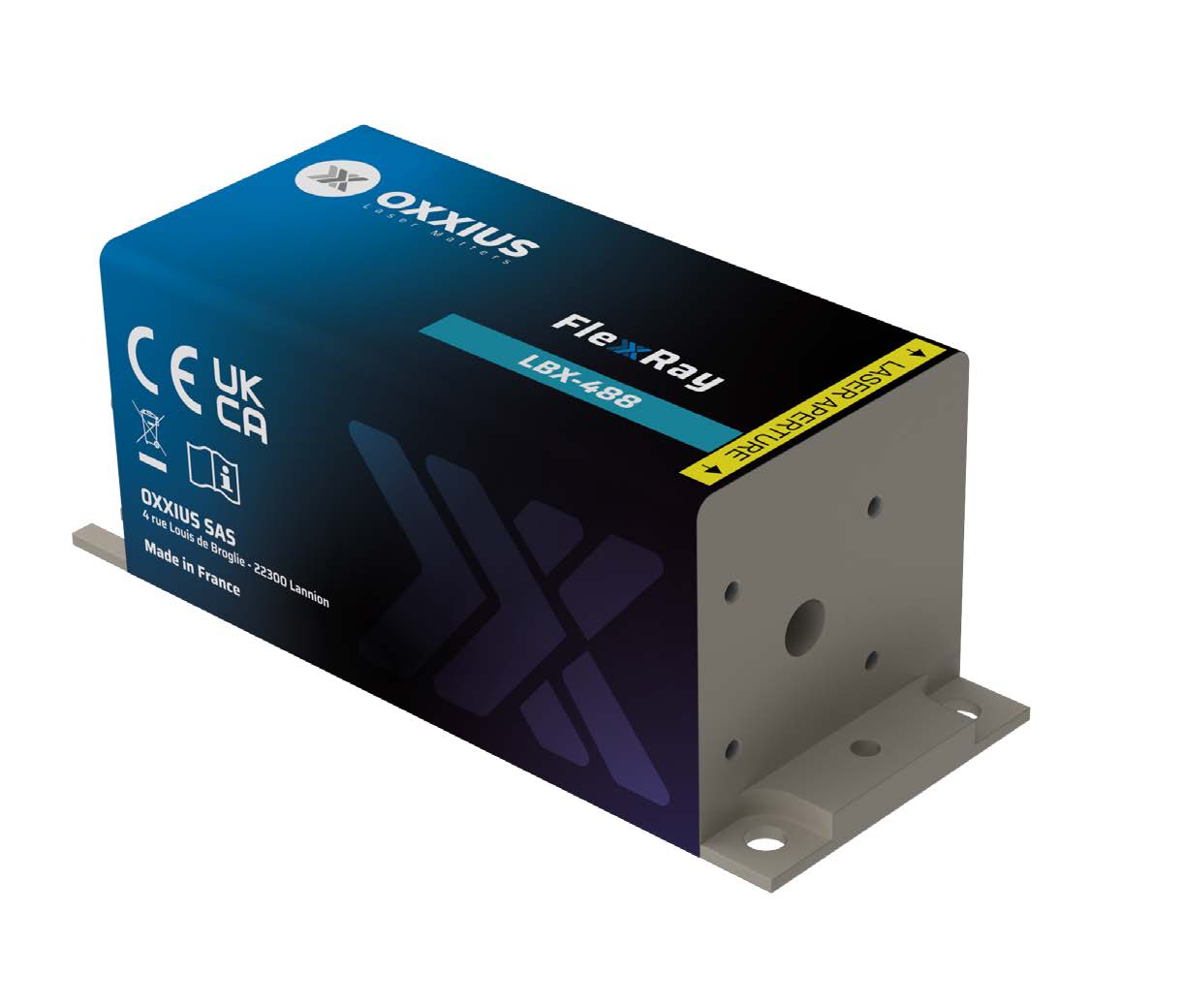

FlexxRay CW and Modulated Lasers

Oxxius‘ FlexxRay CW and Modulated Lasers. High-performance diode laser solutions designed for applications requiring exceptional stability, flexibility, and precise control. Built on Oxxius’ proven laser platform, the FlexxRay range delivers reliable continuous wave (CW) and modulated laser output for advanced scientific and industrial use.

Engineered for versatility, FlexxRay lasers support fast and accurate modulation, making them ideal for applications such as fluorescence microscopy, flow cytometry, Raman spectroscopy, and optical sensing. The robust mechanical design and advanced thermal management ensure stable optical output and long-term reliability, even in demanding laboratory or production environments.

The FlexxRay range is available across multiple wavelengths and power levels, allowing users to select the optimal configuration for their specific application. Seamless electronic control and straightforward system integration make these lasers well-suited for both standalone laboratory setups and OEM instrumentation.

Combining precision engineering with flexible operation, Oxxius FlexxRay CW and Modulated Lasers offer a dependable solution for users who require stable performance, modulation capability, and consistent beam quality in compact, professional laser systems.

Contact our experts today

Visit the photonicshop to order your FlexxRay

Model	Emission Wavelength (typ)	Linewidth	Power Stability Over 8h and ±3K	Output power continous wave	Beam dimensions (typ.) at 1/e2, at laser aperture
LBX-375	375 nm (±5 nm)	≤ 5 nm 2 nm typical	± 1%	200, 400 mW	3.0 x 1.4 mm
LBX-405	405 nm (±5 nm)		± 1%	900, 1200 mW	2.6 x 1.2 mm
LBX-450	450 nm (±10 nm)			650, 1200 mW	2.6 x 0.7 mm
LBX-473	473 nm (±5 nm)			1000 mW	2.6 x 1.2 mm
LBX-488	488 nm (±5 nm)			1000 mW	2.2 x 1.2 mm
LBX-520	520 nm (±10 nm)			800 mW	2.7 x 0.8 mm
LBX-638	638 nm (±10 nm)			1100 mW	4.5 x 4.5 mm
LBX-750	750 nm (±5 nm)			1200 mW	1.9 x 3.8 mm
LBX-785	785 nm (±5 nm)		± 1%	800 mW	3.8 x 1.9 mm
LBX-830	830 nm (±5 nm)			1200 mW	5.2 x 2.6 mm
LBX-940	940 nm (±10 nm)			600 mW	1.9 x 3.8 mm
LBX-980	980 nm (±10 nm)			1000 mW	3.5 x 1.5 mm

Monolithic DPSS Lasers	Laser Diode Modules
Up to 500mW continuous wave	Superior beam quality
Low profile laser head	Excellent stability
Lowest power consumption on the market	Fast TTL and analogue modulation
≤12W fpr LCX’s any wavelength, less than 200mW	Optional clean up filter
TEM00 beam, up to 500mW	TEM00 beam, up to 500mW
Ultra-low noise ≤ 0.2% rms	Ultra-low noise ≤ 0.2% rms
Industry standard footprint (100x400mm, LBX and LCX)	Industry standard footprint (100x400mm, LBX and LCX)
Integrated control electronics	Integrated control electronics
SM/PM/MM fiber coupling options	SM/PM/MM fiber coupling options
USB and RS232 interfaces	USB and RS232 interfaces
Dedicated control software	Dedicated control software
External controller with power display (Plug & Play versions, CDRH-compliant)	External controller with power display (Plug & Play versions, CDRH-compliant)
375, 395, 405, 415, 445, 450, 473, 488, 505, 515, 522, 532.2, 553, 561.4, 607.5, 633, 638, 642, 639.7, 647, 660, 698, 721, 730, 785, 808, 830, 980, 1064 nm	375, 395, 405, 415, 445, 450, 473, 488, 505, 515, 522, 532.2, 553, 561.4, 607.5, 633, 638, 642, 639.7, 647, 660, 698, 721, 730, 785, 808, 830, 980, 1064 nm
