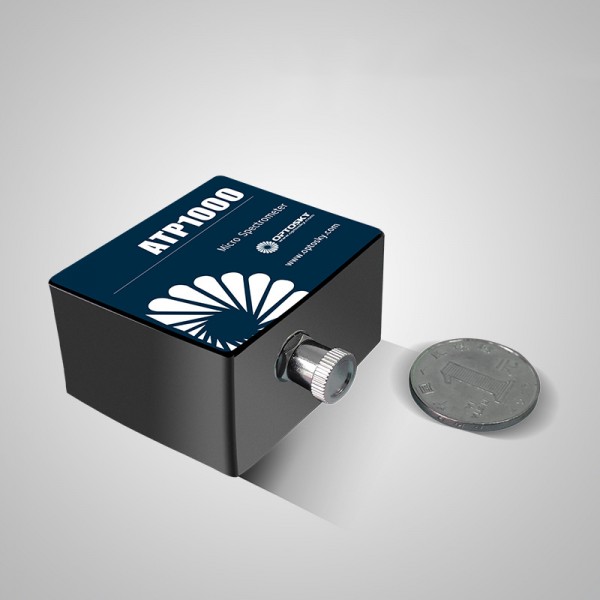

The Optosky ATP1010 Series Miniature Spectrometers are remarkably small, CMOS-based units that are lightweight and ultra-compact (45×40×24 mm3). The ATP1010 is a highly reliable, ultra-high-speed, cost-effective solution, adaptablefor various environmental applications such as on-line testing.
The standard ATP1000 is available in a variety of configurations with spectral ranges of 200-400nm, 350-810nm, 200-850nm or 200-1000 nm. Custom configurations are also available. These are ideal for UV, visible, and near-infrared spectroscopy applications where space and budget are tight.
The ATP1010 can receive optical fiber input or free-space input light from the SMA905 interface, measure it according to the set integration time, and
output the measurement result via USB2.0 (high speed) or UART.
Also available is the UV enhanced ATP1010, offering a 20-fold increase in UV response. Spectral ranges 200-400nm,
300-800nm, 400-900nm, 780-1100nm, 200-1000nm, 300-1100nm or custom configurations
200-1100nm spectral range
Detector:
1204 pixel linear CMOS detector (ATP1000)
512 pixel linear CMOS detector (ATP1010)
16 bit ADC resolution
Available with slit width of 5μm, 10μm, 25μm, 50μm, 100μm, 150μm or 200μm
Optical resolution:
ATP1000: 0.5-5nm (dependent on slit and spectral range)
ATP1010: 0.2-5nm (dependent on slit and spectral range)
Industry
Medical & Life Science
Agriculture
Solar & Environmental
