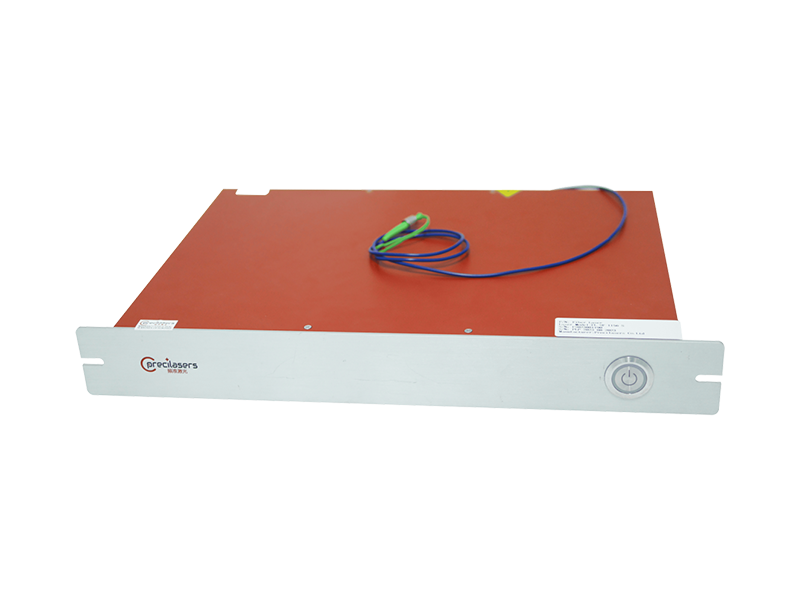

Precilasers’ narrow-linewidth, single frequency Thulium fiber seed lasers are based on doped fiber technology and available in the wavelength range 1695-2140nm with powers up to 10mW and a linewidth down to 3kHz.
Precilasers’ narrow-linewidth, single frequency Thulium fiber seed lasers are based on doped fiber technology and available in the wavelength range 1695-2140nm with powers up to 10mW and a linewidth down to 3kHz.
Precilaser Thulium fiber sees lasers are single-frequency, DFB fiber laser sources. They deliver true single-mode (TEM00), mode-hop-free, low RIN noise performance with excellent wavelength stability. Their Thulium doped laser operates with a Lorentzian linewidth of <3kHz and with powers ＞10mW@>1695nms and ＞5mW@>2050nm.
The Thulium laser is widely used in quantum computing, for example, 1762nm can be used in quantum computing systems based on Ba+.
A Single-frequency Distributed Feedback (DFB) fiber laser is a fiber laser the seed of which has a fiber cavity comprising a periodic structure that stands as a distributed reflector within the specific spectrum of wavelengths.
The cavity represents a distributed Bragg reflector. It is made up of two fiber Bragg gratings generating a single-longitudinal-mode (SLM) emission. Usually, there is a phase shift evenly distributed from both sides, in the middle.
Features
Specification
| Partnumber | FL-SF-XXXX-S(1) | |
| Wavelength Optional Range | 1695-2140nm | |
| Frequently Used Wavelengths | 1762nm | |
| Output Power | ＞10mW@>1695nm | ＞5mW@>2050nm |
| Tuning Range (Temperature) | ＞1nm，Never Mode-hop | |
| Output Mode | Single-mode polarization-maintaining fiber，FC/APC connector | |
| Linewidth（2）（100us integration time） | ＜5kHz(3) | ＜10kHz |
| Polarization Extinction Ratio（PER） | ＞23dB | |
| Power Stability（3 Hour RMS） | ＜0.75% | |
| Beam Quality | M2＜1.05 | |
| Intensity Noise (10Hz-10MHz integration) | ＜0.05% | |
| Intensity Noise（10MHz) | ＜-140dBc/Hz | |
| Intensity Noise（Peak） | ＜-130dBc/Hz | |
| Relaxation Oscillation Peak Frequency | ＜1MHz | |
| PZT Tuning Range | ＞3GHz | |
| PZT Tuning Bandwidth | ＞5kHz | |
| Cooling | Air Cooling | Water Cooling |
