The technology is based on high throughput transmittance diffraction optics with up to 85% efficiency from sample to detector.
Up to four different lasers with extremely stable laser wavelength and laser power (0.1% fluctuation during 8 hours of operation) can be installed in the system 405nm, 532m, 633nm and 785nm.

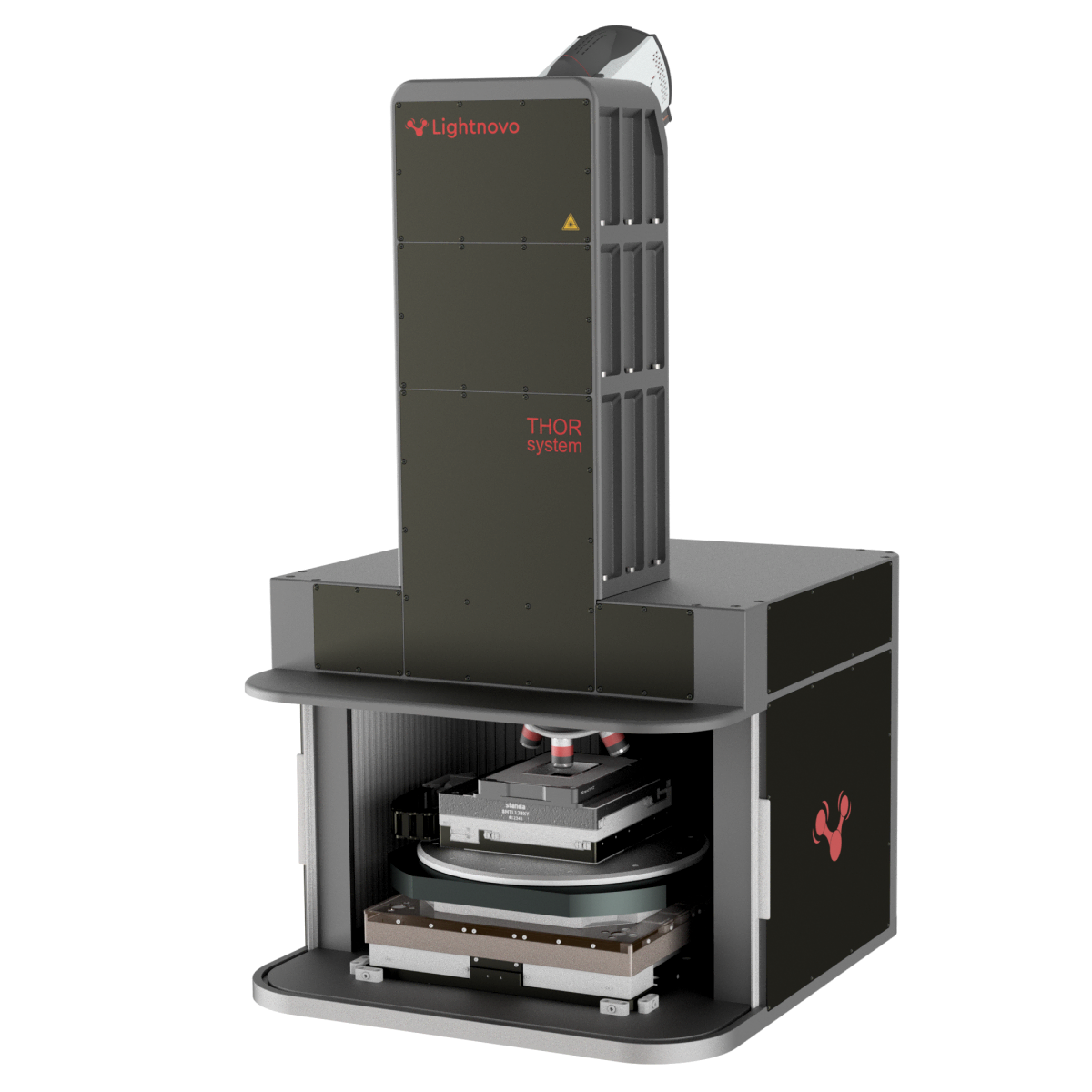

THOR microscope equipped with motorized mechanics for switching between lasers, Raman filters, gratings, white light microscopy filters and other optical components. Microscopy system allows for both sample viewing using the optical microscopy capabilities and performing measurements by Raman spectroscopy simultaneously.
The visual observation reveals morphological details of a sample (e.g. color, size, shape), whereas the spectroscopic measurement reveals information about the molecular structure and chemical composition of a sample.
THOR technology covered by two international patents licensed by Lightnovo (patent 1 & patent 2).
high resolution
fast mapping
non-destructive 3D Raman imaging
up to 4 laser sources with automated fastswitching
artifacts-free polarized Raman spectroscopy
qRICO technology
2D and 3D analysis
Quantitative orientation mapping
Confocal Raman microscopy
Resonance Raman microscopy
Resonance Raman orientation mapping
| Feature Versus Model |
THOR B |
THOR S |
| Spectroscopic Sensor |
sCMOS |
EMCCD |
| Lasers and Power Options |
405 nm (50mW), 455nm (200mW), 532 (200mW / 500mW), 633 nm (70mW), 785nm (100mW / 500mW) |
| Spectral Range |
50-3700cm-1 |
| Spectral Resolution |
280nm |
| Signal-to-Noise Ratio |
1000:1 |
| Lateral Resolution |
280 nm |
| Axial Resolution of Confocality |
600 nm |
| White Light Microscopy |
Reflected light with simultaneous visualization of laser spot and Raman spectrum acquisition |
| Mapping Travel Range in XYZ |
120 x 120 x 20 mm (0.2 x 0.2 x 0.2 mm*) |
| Lateral Step Size |
200 nm (1 nm) |
| Axial Step Size |
200 nm (1 nm) |
| Physical Dimensions (LxWxH) |
800mm x 800mm x 1100mm |
| Weight |
180kg |
fast 3D Raman imaging
Surface Enhanced Raman Scattering (SERS) imaging
polarized Raman imaging
low frequency Raman measurements
Stokes/Anti-Stokes Raman measurements
provides fast optical shutter technology
