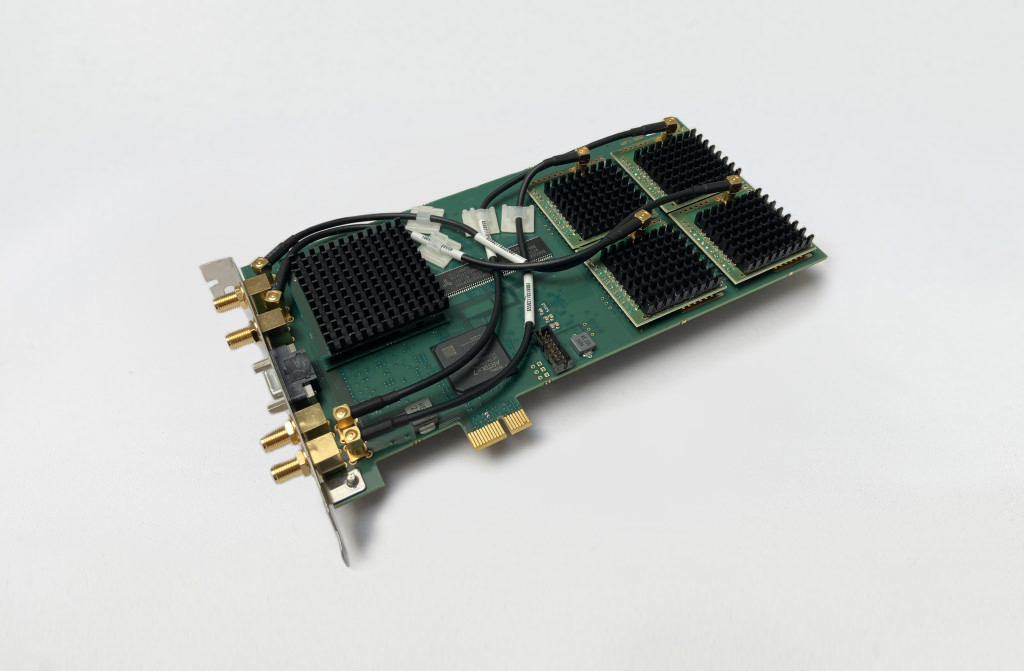

SPC-QC-004 TCSPC Module3/4 Channel TCSPC Module

The SPC-QC-004 offers the usual modes for recording temporal waveforms of optical signals, sequential recording multi-wavelength recording, time- and parameter-tag recording, triggered accumulation of fast time series of curves and simultaneous fluorescence and phosphorecence decay recording.

The SPCM operating and measurement software is included with all SPC series modules. SPCM provides online calculation and display (2D, 3D) of data (decay curves, FCS and FCCS) acquired in multiple operation modes. SPCM software undergoes active continuous development.

Key Specs

• Three Parallel TCSPC Channels + One Sync / Reference Channel or Four Parallel Absolute Timing Channels
• Time Channel Width Down to 4 ps
• IRF Width <39 ps FWHM
• Typical Timing Jitter 16 ps RMS
• Excellent Timing Stability: Timing Drift over 10 Minutes <5 ps RMS
• Low Dead Time
• Adjustable SYNC Delay ± 128 ns
• High Peak Count Rate, up to 120 MHz
• Parallel Fluorescence Decays in up to Three Detection Channels
• Recording of Fluorescence Decay and Other Optical Waveforms
• Multi-Wavelength Detection of Fluorescence Decay Data
• Photon Time- and Parameter Tagging
• Photon Correlation Down to the ps Range
• Free Instrument Software for Windows 10/11

Photon Channels

• Fluorescence decay measurement
• LIDAR
• Anti-bunching experiments
• Coincidence experiments
• fNIRS and NIRS experiments
• Single-molecule spectroscopy
• Fluorescence correlation
