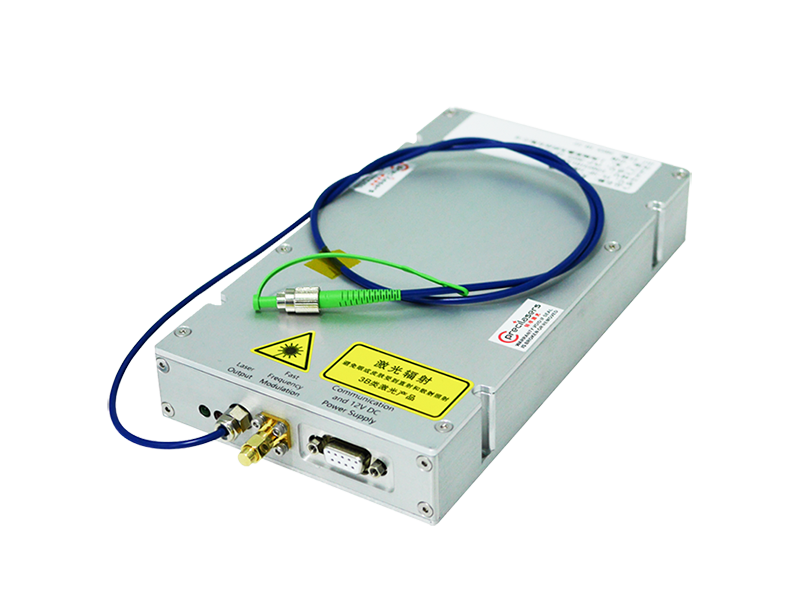

Precilasers‘ narrow-linewidth, Single-Frequency Fiber Seed Laser is based on doped fiber technology and is available in the Ytterbium and Erbium gain bands. Choose from lasers in the range 1014-1162nm with a linewidth down to 3kHz or in the range 1525-1610nm with a linewidth down to 1kHz.
Precilaser single-frequency, DFB fiber laser sources are single-mode (TEM00), mode-hop-free, low RIN noise, fiber lasers with excellent wavelength stability. With linewidth performance as narrow as 3kHz, these robust fiber laser deliver powers up to 50mW in 1014-1162nm wavelength range and up to 10mW in the 1525-1610nm range,
A Single-frequency Distributed Feedback (DFB) fiber laser is a fiber laser the seed of which has a fiber cavity comprising a periodic structure that stands as a distributed reflector within the specific spectrum of wavelengths.
The cavity represents a distributed Bragg reflector. It is made up of two fiber Bragg gratings generating a single-longitudinal-mode (SLM) emission. Usually, there is a phase shift evenly distributed from both sides, in the middle.
Features
Specification
Ytterbium Fiber Laser
|
Part Number |
FL-SF-XXXX-S(1) |
|
|
Wavelength Optional Range |
1014-1162nm |
|
|
Frequently Used Wavelengths |
1018nm, 1064nm, 1112nm |
|
|
Output Power |
＞10mW |
＞50mW |
|
Tuning Range (temperature) |
＞0.7nm，Continuous without mode jumping |
|
|
Output Mode |
Single-mode polarization-maintaining fiber |
|
|
Linewidth（2）（100us integration time） |
＜3kHz(3) |
＜10kHz |
|
Polarization Extinction Ratio（PER） |
＞23dB |
|
|
Power Stability（3 hour RMS） |
＜0.5% |
|
|
Beam Quality |
M2＜1.05 |
|
|
Intensity Noise（10Hz-10MHz integration） |
＜0.03% |
|
|
Intensity Noise（10MHz) |
＜-140dBc/Hz |
|
|
Intensity Noise（Peak） |
＜-130dBc/Hz |
|
|
Relaxation Oscillation Peak Frequency（4） |
1-3MHz |
|
|
PZT Tuning Range |
＞3GHz |
|
|
PZT Tuning Bandwidth |
＞5kHz |
|
Erbium Fiber laser
|
Partnumber |
FL-SF-XXXX-S(1) |
|
|
Wavelength Optional Range |
1525-1580nm |
1580-1610nm |
|
Common Wavelengths |
1542nm, 1550.12nm, 1560.48nm, 1590nm |
|
|
Output Power |
＞10mW |
|
|
Tuning Range (Temperature) |
＞1nm，Never Mode-hop |
|
|
Output Mode |
Single-mode polarization-maintaining fiber |
|
|
Linewidth（2）（100us integration time） |
＜1kHz(3) |
＜2kHz |
|
Frequency Noise[Hz/rtHz] |
65@100Hz,26@1kHz,13@10kHz |
|
|
Phase Noise[urad/rtHz]@1m |
2.0@100Hz,0.8@1kHz,0.4@10kHz |
|
|
Polarization Extinction Ratio（PER） |
＞23dB |
|
|
Power Stability（3 hour RMS） |
＜0.75% |
|
|
Beam Quality |
M2＜1.05 |
|
|
Intensity Noise（10Hz-10MHz integration） |
＜0.1% |
|
|
Intensity Noise（10MHz) |
＜-140dBc/Hz |
|
|
Intensity Noise（Peak） |
＜-110dBc/Hz |
|
|
Relaxation Oscillation Peak Frequency |
0.8-3MHz |
|
|
PZT Tuning Range |
＞3GHz |
|
|
PZT Tuning Bandwidth |
＞5kHz |
|
