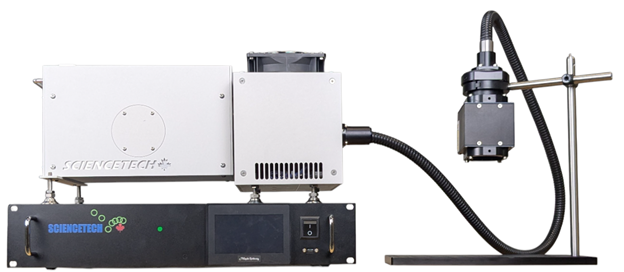

With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberised solar simulators ideal for research that just can’t accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can’t accommodate a bulky solar simulator.
The Lightline includes space for fitting one internal accessory. Options are a motorized 6-position filter wheel with a variety of spectral or neutral density filters that can be supplied, or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.
Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.
Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.
– Includes adjustable touchscreen 601-series power supply with current control from 80-100% of max current.
– Includes computer-controlled high intensity shutter.
– 4 feet light guide (other light guide lengths are possible), light guides can be fitted with KF flanges for glovebox integration.
– Includes one 300W xenon short arc lamp.
– Class AAA ASTM standard
– Fiberized output for flexible illumination
– Easy-to-use touchscreen controls
– Light intensity control available
– Up to 18 Suns intensity
– Remote control by PC
– Cost-effective for researchers
– Spectral range 350-1800 nm
– Easy glovebox integration
Technical Specifications
Model |
AX-100 |
AX-200 |
AX-400 |
Target Area |
10 x 10mm |
25 x 25mm |
50 x 50mm |
Sun Level |
18 Suns |
4 Suns |
1 Sun |
Spectral Match |
A |
Spatial Non-Uniformity |
A |
Temporal Instability |
A |
Wavelength Range |
350-1800nm |
Working Distance |
90-110mm |
190-210mm |
390-410mm |
Air Mass Filters |
AM1.5G, AM1.5D |
Lamp |
300W Xenon, 900h (Average) Lifetime, Forced Air Cooling |
Shutter |
Integrated Touchscreen Control, 0-10000s, Adjustable Duty Cycle |
Fiber Bundle Length |
1.22m (4′) Standard |
Power Supply Model |
601-300 |
Input Voltage/Current |
100-240 VAC, 6A-3A |
Environment |
Temperature 10-35°C , Humidity 20-80% , Non-condensing |
Dimensions (LxWxH) |
See Datasheet |
Weight |
15kg |
Testing photovoltaic cell performance
Photochemistry
Photobiology
Photocatalytic research
Photosynthesis
Environmental durability testing
