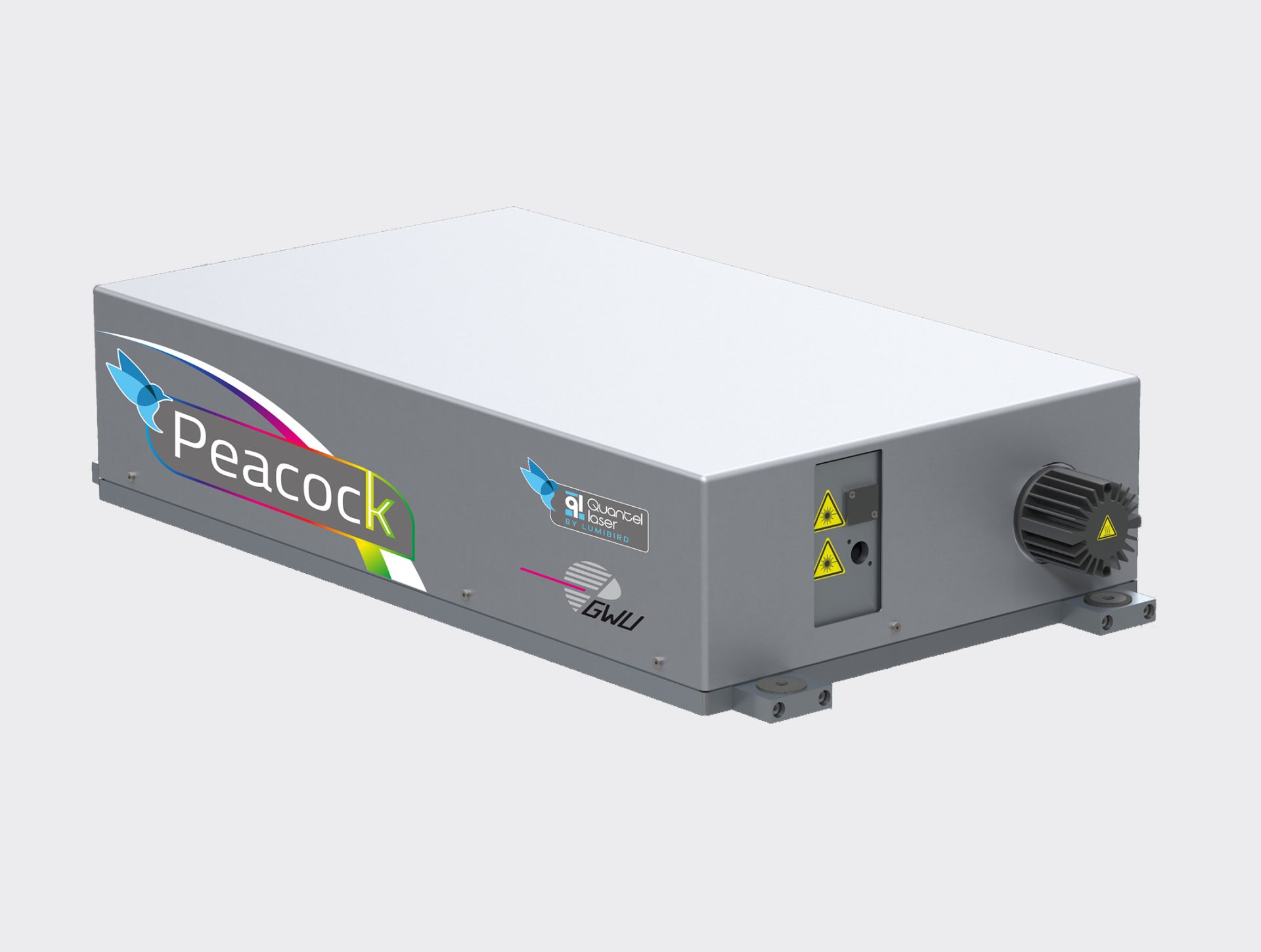

Quantel‘s new Peacock 532 Integrated OPO is a hands-free module, offering tunable nanosecond pulses in the near-Infrared at 30Hz pulse repetition rate.
The Peacock 532 OPO is the ideal tool for users looking for a high-quality laser for demanding applications in the medical, biotechnology or spectroscopy fields.
With its fully automated wavelength selection, real-time output energy control or laser beam shaping capability, it has outstanding versatility. The Peacock is a single bench unit for easy integration into complex systems. The Peacock utilises extremely fast wavelength tuning technology allowing for fully automated shot-to-shot wavelength shift across the full range.
Integrated wavelength measurement allows for easy monitoring and calibration with a built-in spectrometer. The output is prepared for factory-configured or customer-defined fiber coupling for convenient beam delivery or can also be used free-space.
This turn-key, compact YAG-OPO is driven by the rugged flash-lamp pumped CFR solid-state Nd:YAG laser from Quantel. It features a fully Integrated pump laser with quick connect cables and can be flashlamp and/or Q-Switch externally triggered. User changeable flashlamp (50 million shot lifetime) and DI cartridge. All tunable wavelengths accessible without any manual configuration changes.
| Peacock 532 | ||
|---|---|---|
| Wavelength (nm) | Signal | 680-980 |
| Idler | 1150-2200 | |
| Peak Energy (mJ) @ 725 nm | 35 | |
| Repetition Rate (Hz) | 30 | |
| Pulse Duration (ns) | <9 | |
| Beam Diameter (mm) | 6 | |
| Linewidth (nm) @ 727 nm | <3 | |
| Beam Delivery | Customer-Defined fiber coupled or free space | |
| PUMP LASER | ||
| Wavelength (nm) | 532 | |
| Energy per Pulse (mJ) | 130 | |
| Pulse Duration (ns) | <13 | |
| Beam Diameter (mm) | <6.35 | |
| Beam Divergence (mrad) | <1.5 | |
| OTHER INFORAMTION | ||
| Power Requirements | 100-240 VAC, 50/60 Hz, single phase | |
| Cooling | Water to Air | |
| Operating Temperature | 18 °C to 28 °C | |
| Storage temperature | – 10 °C to + 50 °C | |
| Cable length (m) | 3 | |
| Flashlamps warranty | 50 million shots | |
Medical
LIDAR
Spectroscopy
Photo acoustic imaging
Remote sensing
Biotechnology
