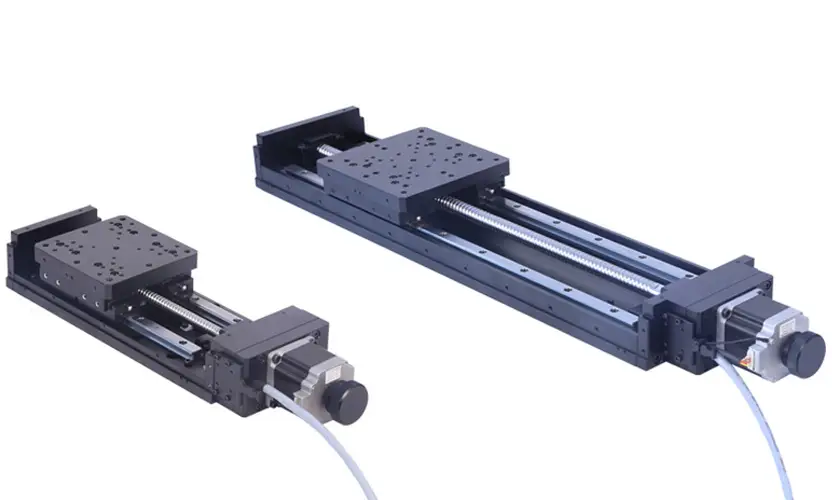

Introducing the PA Series Motorised Linear Stages from Zolix. These mid-sized and mid-travel-sized precise stages (50-1000mm) are designed for applications where stability is critical.
The PA Series employs a solid U-type structure. Making it suitable for applications requiring heavy load (up to 80kg), high rigidity, and multi-dimensional elements.
The PA Series features fine machining for U-type aluminium alloy base plates The treated, black anodic-oxide coating gives a high rigidity and nice appearance.
Precise-grade linear-slider guides guarantee high load capability and high motion accuracy.
Optional stainless-steel dustproof covers are available.
Two-phase stepping motors are standard, servo motors optional.

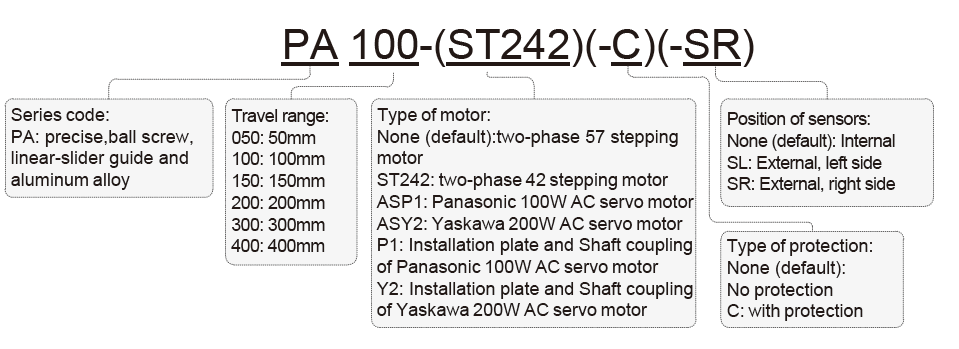

Mechanical Specifications
| Model Number | PA050 | PA100 | PA150 | PA200 | PA300 | PA400 | PA600 | PA800 | PA1000 |
|---|---|---|---|---|---|---|---|---|---|
| Table Dimensions (mm) | 120 x 120 | 150 x 150 | 200 x 200 | ||||||
| Travel Range (mm) | 50 | 100 | 150 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Transmission Mechanism | Precise Ball Screws Φ12 x 4 | Precise Ball Screws Φ16 x 5 | Precise Ball Screws Φ25 x 5 | ||||||
| Guides (Guiding Mechanism) | Linear-Slider Guides | ||||||||
| Main Body Materials and Surface Treatments | Black Anodic-Oxidation Alumninium-Alloy | ||||||||
| Weight (kg) | 5.8 | 6.2 | 6.6 | 7 | 8.9 | 9.9 | 21.5 | 25 | 28.4 |
| Shaft coupling (external diameter-diameter of aperture 1-diameter of aperture 2) (mm) | 30.606.35.8 | 32-8-12 | |||||||
Heavy load, high rigidity and multi-dimension combinations
Accurate operation scenarios with relative complex environments.
