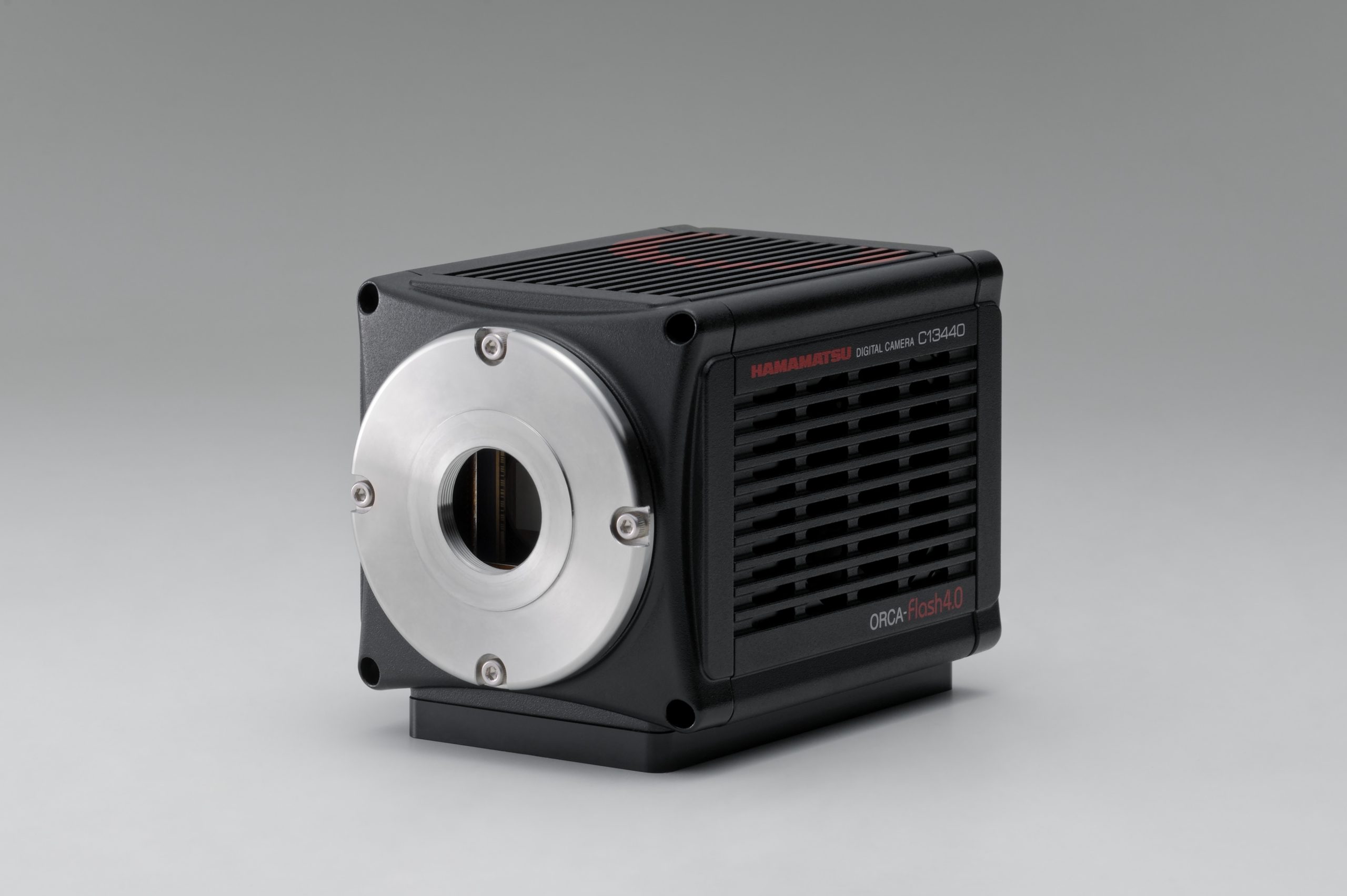

ORCA Flash 4.0 V3

Hamamatsu ORCA Flash 4.0 V2 expertly handles applications ranging from the acquisition of beautiful scientific images to experiments that demand detection, quantification and speed. With on-board FPGA processing enabling intelligent data reduction, highly refined in-camera, pixel-level calibrations, increased USB 3.0 frame rates, purposeful and innovative triggering capabilities, patented lightsheet read out modes and individual camera noise characterisation, the ORCA Flash 4.0 V3 is the precision instrument for imaging.

Application Categories: Research & Education / Sensing

Description

Features

Applications

Datasheets

Description

Features

Specifications

Product Number	C13440-20CU
Imaging Device</td	sCMOS
Cell (pixel) Size (µm)	6.5
Pixel Array (Horizontal by Vertical)	2048 x 2048
Effective Area (Horizontal by Vertical in mm)	13.312 x 13.312
Peak Quantum Efficiency (QE)	82% @ 560nm
Dynamic Range	37,000
	USB 3.0	With Optional Camera Link Board for PC
Readout Noise (N) Median in Electrons Slow Scan	0.8 @ 30 fps	0.8 @ 30 fps
Readout Noise (N) rms in Electrons Slow Scan	1.4 @ 30 fps	1.4 @ 30 fps
Readout Noise (N) Median in Electrons Standard Scan	1.0 @ 40 fps	1.0 @ 100 fps
Readout Noise (N) RMS in Electrons Standard Scan	1.6 @ 40 fps	1.6 @ 100 fps
Maximum Full Resolution Frame Rate (fps)	40	100
Cooling Temperature Readout	Yes
Dark Current (Electrons/Pixel/S) – Air Cooled to -10°C	0.06
Dark Current (Electrons/Pixel/S) – Water Cooled to -10°C	0.06
Dark Current (Electrons/Pixel/S) – Water Cooled to -30°C	0.006
Full Well Capacity in Electrons	30,000
Digital Outputs (With Programmable LUT)	16, 12, 8 Bits
Readout Modes	Normal Area, Lightsheet, W-VIEW Mode, Dual Lightsheet
Binning	2×2 / 4×4
Master Pulse Generator (Pulse Modes)	Internal Sync, Start Trigger, Burst
Master Pulse Generator (Pulse Interval in 1 µs Increments)	10µs to 1 s
Hot Pixel Correction	Off, Low, Medium, High
Dark Signal Non-Uniformity (DSNU)	0.3 e- rms
Photo Response Non-Uniformity (PRNU) at Half Level of Full Light Range (15,000 Electrons)	0.06% rms
Photo Response Non-Uniformity (PRNU) at Low Light Level (700 Electrons)	0.3% rms
Linearity Error, Full Light Range (EMVA 1288 Standard)	0.5%
Linearity Error, Low Light Range (<500 Electrons Signal)	0.2% / Less Than Approx. 1e- Absolute Error
On-Camera Connectivity	Both USB 3.0 and Camera Link
V2 Compatibility Mode (for use with Legacy Software)	Yes
Lens Mount	C-Mount
