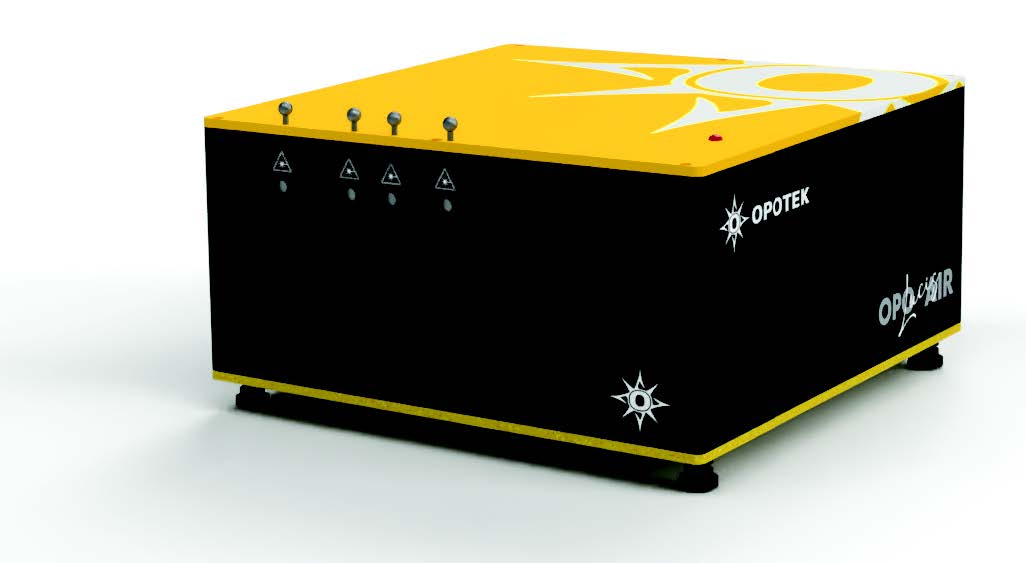

Opolucis Air Tunable OPO Laser

The Opolucis AIR series utilise optical parametric oscillator (OPO) technology to generate tunable wavelengths across the UV, visible, near-infrared, and mid-infrared. Designed for portability and OEM integration, the Opolucis AIR is end-user installable with no factory visit required. All tunable wavelengths exit from a single port and are accessible without any manual configuration changes. Wavelength tuning is motorised and computer controlled via a single USB connection.

Unlike any previous OPOTEK tunable laser, the Opolucis AIR requires no water cooling. There is no chiller to install or maintain, no DI water cartridge to replace, and no laboratory plumbing required. This makes it uniquely suited to space-constrained labs, core imaging facilities, portable field instruments, and OEM applications requiring DC power.

The Opolucis AIR series is available in three configurations:

OPOLUCIS AIR 1030 (VIS-optimised, 355 nm pumped)

Tuning range: 405–2200 nm signal/idler; 210–410 nm with UV extension option</p>

Peak OPO energy: up to 8 mJ @ 450 nm

OPOLUCIS AIR 1020 (NIR-optimised, 532 nm pumped)

Tuning range: 650–2300 nm signal/idler; 330–650 nm with NIR extension option

Peak OPO energy: up to 12.5 mJ @ 750 nm

OPOLUCIS AIR 1010 (MIR, 1064 nm pumped)

Tuning range: 2700–3100 nm (P model), 3000–3450 nm (A model)

Peak OPO energy: up to 5 mJ (P model)

MAIN FEATURES

• All-air-cooled — no chiller, no water lines, no DI filter required
• Fully integrated housing: DPSS pump laser, harmonics, OPO, optics, electronics, and cooling in one unit
• DPSS pump laser with minimal maintenance
• New dual direct-drive OPO tuning mechanism — no lubrication, programmable recalibration by end user

<li>Diode and/or Q-Switch triggering

• Computer controlled via a single USB connection
• Control software and software development kit (SDK) included
• Programmable scans
• No factory installation required
• End user accessible alignment verification
• Temperature controlled, motorised Harmonics
• All tunable wavelengths output from a single port without any manual configuration changes
• Access to fundamental and pump beams (1064 nm, 532 nm, and/or 355 nm)
• Fibre bundle compatible output port
• Optional 24/48 V DC power input — ideal for portable and OEM applications

AVAILABLE OPTIONS AND ACCESSORIES

Extended Tuning Range: Extends the tuning range to 210–410 nm (1030 model) or 330–650 nm (1020 model).

Motorised Variable Attenuator (MVA): Mounted, motorised and computer-controlled Glan Laser polariser that allows continuously variable attenuation from 100% down to 1% while maintaining maximum pulse-to-pulse stability. End user removable/installable. Reduces maximum pulse energy by 10–15% when installed. Recommended for tunable lasers in place of electrical (Q-switch delay) attenuation. Can only be used with visible and near-infrared wavelengths and should be removed when operating below 400 nm if applicable.

Fibre Delivery Kit (available on 1520/1530 models only): Fibre bundle installed directly into the auto-locking OPO output port. For optimal performance, an internal lens is installed inside the system. The lens can be removed by the end user for free space access. Typical transmission is 60–70% at shorter wavelengths and 40–60% at longer wavelengths. Fibre bundles are 2 m long with 3–5 mm input/output diameters and numerical aperture of 0.37. Supports wavelengths from 350–2500 nm. Can only be used with visible and near-infrared wavelengths and should be removed when operating below 400 nm if applicable.

Fast Tuning (FT): Change tuning speed from seconds to <50 ms between any wavelength in the Signal or Idler range.

Wavelength Monitoring: Ocean Optics micro-spectrometer available for real-time wavelength verification. Inquire for pricing

<td><0.1

2300 (20210U)210-2200 (20310U)Repetition Rate (Hz)20Pulse to Pulse Stability (%)2</td>

Linewidth (cm-1)6-50

<

Tuning Step Resolution (ns)&lt;0.5<0.5Signal–<0.5<0.1

<tr>Idler<1<1.0<0.5

Pulse Duration (ns)9Beam Divergence (mrad)<10<2<2Signal Polarisation–HorizontalIdler/UV PolarisationVertical</td>Residual 1064nm Access (mJ)504025Residual 532nm (mJ)–2020Residual 355nm Access (mJ)–10

• Photoacoustic Imaging
  • Wide NIR tuning coverage from a compact, air-cooled unit makes the Opolucis AIR ideal for photoacoustic imaging research. No chiller means it can be deployed directly in imaging suites and clinical environments without infrastructure modification. Compatible with photoacoustic microscopy (PAM) and photoacoustic computed tomography (PACT) systems.
• Laser Spectroscopy
  • Broad tuning range and narrow linewidth across UV, VIS, and NIR support absorption spectroscopy, laser-induced fluorescence (LIF), cavity ring-down spectroscopy (CRDS), and Raman excitation.
• Mass Spectrometry
  • The UV-capable 355 nm-pumped model (1030) is well suited to resonance-enhanced multiphoton ionisation (REMPI) and other laser ionisation techniques used in analytical mass spectrometry.
• Transient Absorption Spectroscopy
  • Stable pulse energies, fast tuning, and wide spectral coverage support pump-probe and transient absorption measurements. Air-cooling removes the noise and vibration associated with water-cooled chillers.
• Time-Resolved Spectroscopy
  • Programmable wavelength scans and diode/Q-switch triggering enable time-resolved measurements across chemistry, materials science, and biology.
• OEM Instrument Integration
  • Air-cooled, compact form factor with optional 24/48 V DC power and USB control makes the Opolucis AIR directly integrable into commercial instruments and OEM systems without dedicated cooling infrastructure. Contact Photonic Solutions to discuss OEM volume pricing.
• Non-Destructive Testing (NDT) & Optical Damage Testing
  • Tunable UV/VIS/NIR output for laser-induced damage threshold (LIDT) measurements, optical coating characterisation, and spectroscopic NDT.
• Solar Cell & Photovoltaic Characterisation
  • Spectral response and quantum efficiency (EQE) measurements across the photovoltaic absorption spectrum.
• Remote Sensing & Environmental Monitoring
  • Compact portable form factor with DC power option enables field-deployable LIDAR and differential absorption LIDAR (DIAL) configurations
