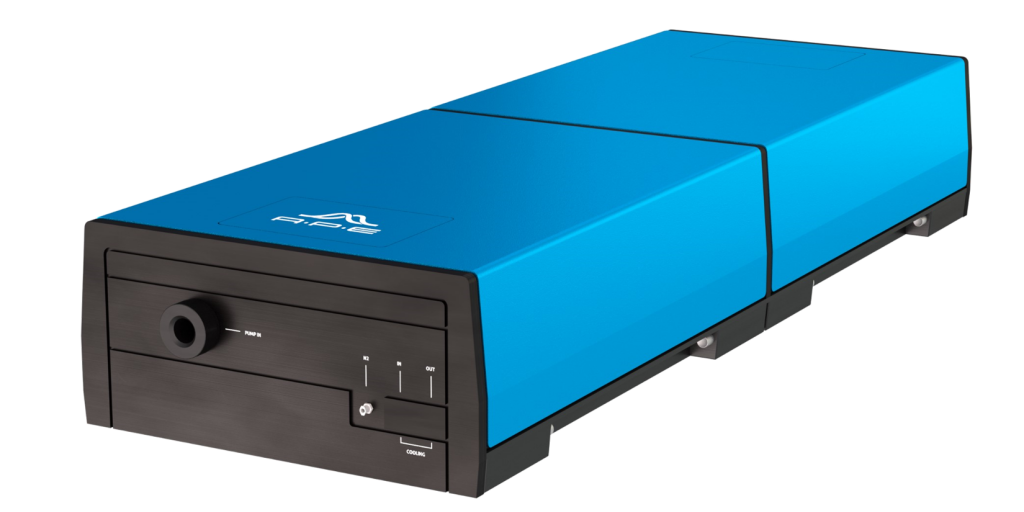

Newly designed OPO-X OPOs for Ti:Sapphire Lasers picosecond and femtosecond OPOs from APE, with fully automated control for key applications such as coherent Raman spectroscopy (CARS and SRS), multiphoton microscopy, quantum dot excitation and transient absorption microscopy (TAM).
OPO-X is a synchronously pumped widely tunable optical parametric oscillator (OPO) for fs or ps Ti:Sapphire laser pumping, covering the wavelength range from 505 … 4000 nm. It is fully automated, i.e. software controlled tuning over the full specified wavelength range. This is made possible by its new control electronics, internal diagnostics, and Control Software packaged conveniently in a new housing.
| OPO-X | Femtosecond(fs) | Picosecond (ps) |
|---|---|---|
| Wavelength Range Signal | 1000 nm … 1600 nm | |
| Wavelength range Signal SHG, optional | 505 nm … 740 nm | |
| Wavelength range Idler, optional | 1750 nm … 4000 nm | |
| Power Signal | >650 mW at 1100 nm pumped with 3.5 W at 800 nm, others on request | >520 mW at 1100 nm pumped with 2.8 W at 800 nm, others on request |
| Power Signal SHG | >500 mW at 600 nm pumped with 3.5 W at 800 nm, others on request | >400 mW at 600 nm pumped with 2.8 W at 800 nm, others on request |
| Pulse width, typical | 200 fs pumped with 130 fs | 1.6 ps pumped with 2 ps |
| Time bandwidth product, typical | 0.6 | |
| Repetition rate | ~76 MHz … ~80 MHz, equal and synchronous to pump laser, others on request | |
| Polarization | Signal and Idler: linear, horizontal Signal SHG: linear, vertical |
|
| Beam quality M2, typical | <1.2 | |
| Noise, typical | <0.5% RMS | |
| Wavelength tuning | Fully automated | Fully automated, expect ps Signal SHG semi-automated |
| Wavelength tuning feedback | Built-in spectrometer, 495 nm … 1630 nm | |
| Software | Notebook with pre-installed software included | |
| Remote control | via TCP/IP | |
Stimulated Raman spectroscopy (SRS)
Coherent anti-Stokes Raman spectroscopy (CARS)
SRS microscopy of vibrational probes
Second harmonics imaging (SHG)
Pump-probe spectroscopy
Surface enhanced Raman spectroscopy (SERS)
