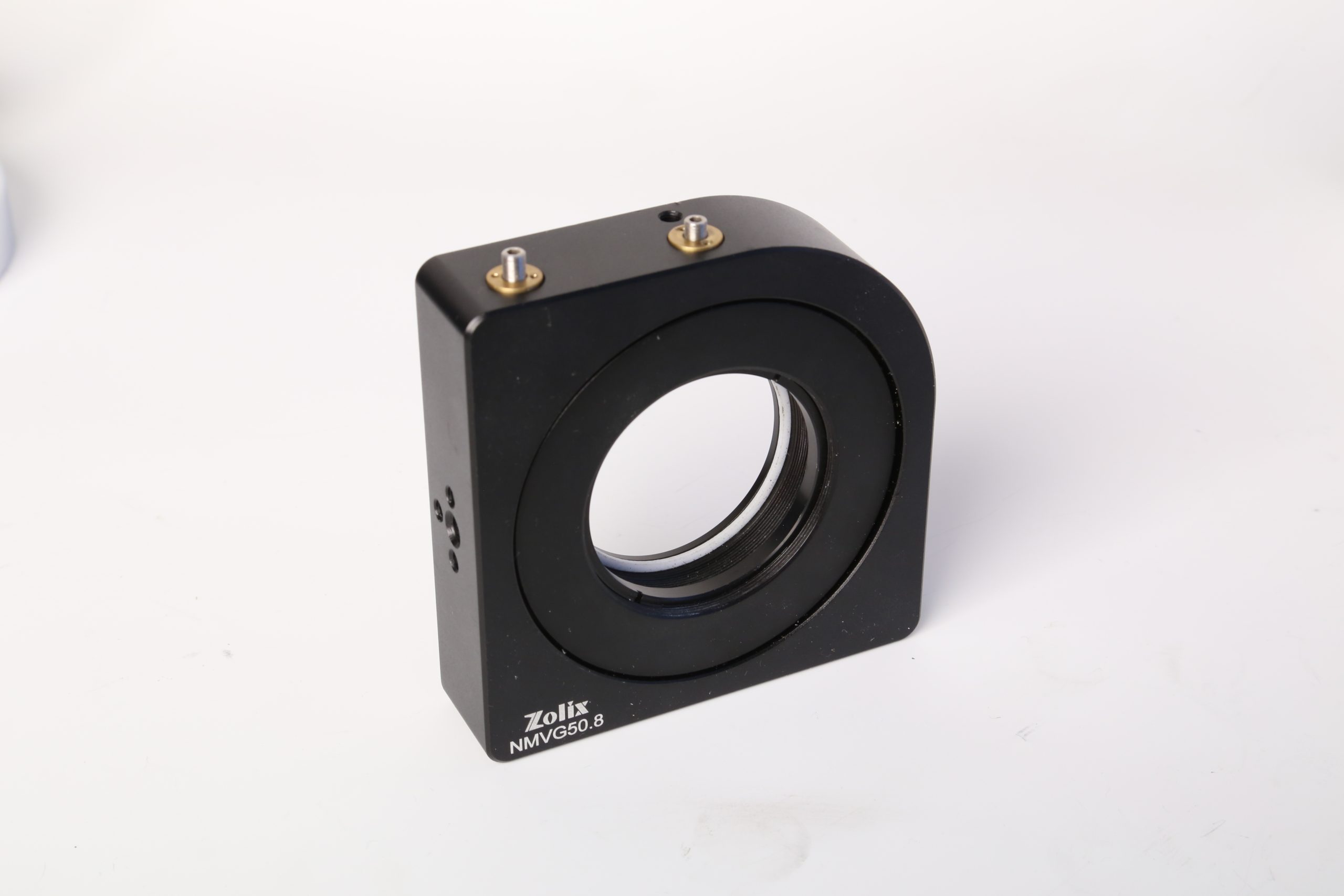

Zolix‘s NMVG Series Top Adjust Gimbal Mirror Mounts have top-mounted adjustment screws to avoid interfering with system placement.
This makes them the ideal mirror mount for applications where you need to adjust without obstructing the beam path.
Zolix‘s NMVG Series Top Adjust Gimbal Mirror Mounts have top-mounted adjustment screws to avoid interfering with system placement.
This makes them the ideal mirror mount for applications where you need to adjust without obstructing the beam path.
| MODEL | NMVG25.4 | NMVG50.8 |
|---|---|---|
| Optic Size (mm) | ø25/ø25/4 | ø50/ø50.8 |
| Optic Edge Thickness (mm) | 3~10 | |
| Angular Range (°) | ±3 | |
| Clear Aperture (mm) | ø23 | ø47 |
| Optical Axis Height (mm) | 35 | 47 |
| Overall Height (mm) | 75 | 100 |
| Overall Thickness (mm) | 24 | |
| Resolution: Angular Adjustment per Revolution (°) | ≈0.78 | ≈0.48 |
| Main Body Material and Surface Treatment | ||
Visit the webshop to shop for high-quality products and enjoy top-notch customer service.
