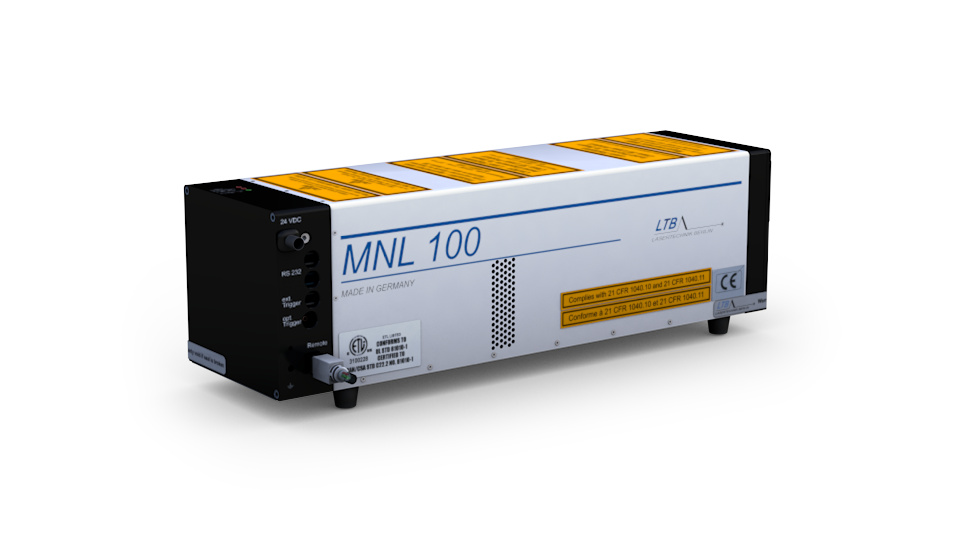

The MNL 100 UV laser is an advanced, compact OEM laser designed for applications requiring
UV output at 337.1 nm. Utilising a nitrogen-based design, it operates without an external gas
supply, making it a highly reliable and maintenance-free solution for demanding
environments. Weighing approximately 3.5 kg with a total volume of less than 3 litres, this
laser is ideal for applications where space and portability are critical.
Long Life Operation:</strong>&amp;lt;br />The MNL 100 guarantees minimum of 60 million laser pulses or 2 years of maintenance-free
operation. This lifespan is achieved through two LTB innovations:
• Sealed metal-ceramic laser tube for long-term stability and low energy decay.
• Solid-state power switch for precise energy control.
Performance Features:
• Integrated Controller: Offers a wide range of preset configurations and easy adaptation&amp;amp;amp;lt;br />to different applications.
• Firmware-Controlled Adjustments: Full control of laser functions and parameters via PC
interface, enabling power fine-tuning for specialized use cases.
/>• Precise Trigger: Ensures reliable operation with fixed delay and jitter (< 2.5 ns) for critical<br />timing applications.<br />• Air-Cooled Design: Efficient heat management via air cooling ensures consistent
performance in extended use.
• Shutter: Provides precise control over beam exposure for applications requiring&lt;br />intermittent or timed UV output.</p></p>
Optional Add-Ons:
• Energy Monitoring: Integrated energy monitor for real-time output feedback.
• Attenuation: Integrated continuous at
tenuator with a ratio up to 1:10,000.
• Sync Out: Electrical pretrigger output with jitter < 200 ps.
• Fiber Coupling: Integrated option for fiber coupling (200–1,000 μm).
• Low divergent: Small focus spot sizes for precise long-distance targeting.
Power and Connectivity:
• Power Supply: Operates on a 24 V DC input, with an included wide-range AC adapter (90-
260 V, 50-60 Hz).
• Interface Options: Includes serial bus protocol and DLL, with optional standalone
operation (no PC required).
<tbody><tr&amp;amp;amp;amp;gt;Energy Stability SD/ For all Repetition Rates (%)≤2/td>
<td>Typ. Pulse Energy @ Pulse Quantity (μJ@Mio)120@100100@10065@10050@100<Pulse Power, typ. (kW)4337<td>25
<td>Wavelength (nm)337.1Spectral Bandwidth (nm)0.1Pulse Halfwidth FWHM, typ. (ns)span=”4″&amp;amp;amp;amp;gt;3Guaranteed Pulse Quantity (Mio)</td><td>30603060
<th>106-LD
<td>Guaranteed Pulse Energy (μJ)</td>130110755518Repetition Rate up to (Hz)
<tr>Specification103-PD106-PD103-LD>60
For further specifications, refer to datasheet.</p>
TR-FRET/TRF
MALDI-TOF MS
Laser-Induced Fluorescence (LIF)
UV Microscopy
μ-LIBS
Acoustic Wave Spectroscopy
