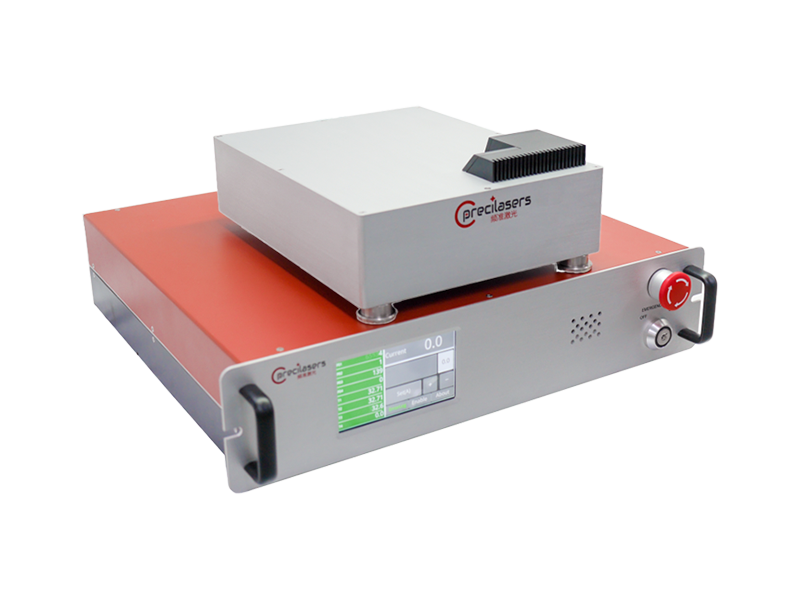

Based on ytterbium-doped fiber amplification technology, Precilaser‘s low-noise Yb amplifier will amplify single-frequency or non-single-frequency input lasers within the 976-1134 nm range, achieving a maximum output of 200 W while ensuring extremely low intensity noise and phase noise in the output laser. It features high power, low-noise amplification, and ultra-fast seed laser shutdown protection.
Precilasers offers a 1010-1120 nm Ytterbium-doped fiber amplifier with innovative ASE suppression technology. Maximum output power reaches up to 130 W for a single-frequency operation. The lasers have ultra-low intensity noise, which makes them ideal light sources for the applications like optical lattice and laser atoms cooling. The full protection system of the laser ensures long-term free of maintenance and long life time.
Specification
| Part number | FA-SF-X-Y-CW(1) | |||||
| Wavelength Range | 976-978nm | 1012-1020nm | 1020-1080nm | 1080-1095nm | 1095-1110nm | 1110-1134nm |
| Output Power | ＞2W/8W |
＞2W/10W/30W/ 50W/100W |
＞2W/10W/30W/50W/ 100W/130W/180W |
＞2W/10W/30W/ 50W/100W |
＞2W/10W/30W | ＞2W/5W/10W |
| Typical Wavelength | 977nm, 1012nm, 1064nm, 1112nm | |||||
| Bandwidth | ＞±2nm | ＞±2nm | ＞±10nm | ＞±5nm | ＞±5nm | ＞±2nm |
| Relative Intensity Noise | <0.03% (RMS, 10Hz-10MHz Integration) | |||||
| Power Stability | <0.75% @3hours, RMS | |||||
| Power Tuning Range | 1-100% | |||||
| Output Mode |
Single Mode PM fiber，FC/APC Connector（Output Power≤2W) OR Collimated Output（All Power） |
|||||
| Beam Diameter（3） | 0.6±0.2mm(Output Power≤30W)， 1.7±0.2mm(Output Power>30W) | |||||
| Pointing Stability | <±2μrad/℃ | |||||
| Beam Quality | TEM00，M²<1.1 | |||||
| Polarization | Linear, >23dB | |||||
| Seed Laser Input Power | ≥10mW(2)，Single Mode PM Fiber，FC/APC Connector | |||||
| Seed Laser Input Isolation | >25dB | |||||
| Output Laser Isolation | >25dB | |||||
| Cooling | Air Cooling(Output Power≤50W)/Water Cooling（All Output Power） | |||||
| Operating Environment & Power Supply | ||||||
| Temperature | 15-30 ℃（Air Cooling） OR 15-35 ℃（Water Cooling） | |||||
| Power Supply | 100V-240V, AC, 50/60Hz | |||||
| Communication | RS422 | |||||
