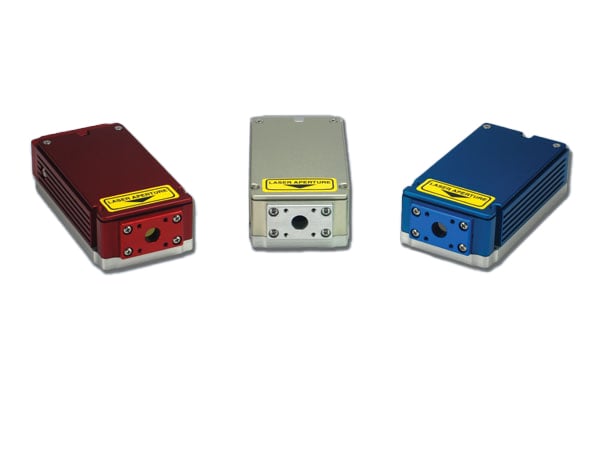

The Quantum Composers Jewel Q-switched, Nd:YAG DPSS laser. With a compact, monolithic design delivering 10mJ at 1064nm, 4mJ at 532nm, 2mJ at 355nm and 1.5mJ at 266nm.
The Quantum Composers Jewel Q-switched, Nd:YAG DPSS laser. With a compact, monolithic design delivering 10mJ at 1064nm, 4mJ at 532nm, 2mJ at 355nm and 1.5mJ at 266nm.
The Jewel is a compact laser source featuring a monolithic design. It is ideal for use in both laboratory environments and OEM applications. Reliable, light-weight, this compact laser features easy to swap components making the Jewel ideal for a wide range of commercial and OEM applications. The Jewel is just 180mm long and weighs only 1.14kg which will reduce the space and weight limits on laser systems and dramatically decrease downtime and production costs.
Main Features :
– Energy Max: 10mJ
– Rep Rate: Up to 20Hz
– Excellent Shot to Shot Stability
– Diode Pumped to Increase Reliability & Efficiency
– Integrated Electronics and Thermal Management
– High Efficiency Pumphead, 20Hz Less Than 5W
– Standard USB Communication
| Rep Rate (Hz) | 1 to 20 |
|---|---|
| Energy per Pulse (mJ) | |
| 1064nm | 10 |
| 532nm | 4 |
| 355nm | 2 |
| 266nm | 1 |
| Energy Stability (%RMS) | |
| 1064nm | <2.5 |
| 532nm | <3.5 |
| 355nm | <5.0 |
| 266nm | <5.0 |
| Energy Variance (%(max-min)/(max+min)) | |
| 1064nm | <5.0 |
| 532nm | <7.0 |
| 355nm | <10.0 |
| 266nm | <10.0 |
| Pulse Duration | |
| 1064nm | 10±2.0 |
| 532nm | 9±2.0 |
| 355nm | 8±2.0 |
| 266nm | 8±2.0 |
| Timing Jitter (±ns) | <2 |
| Beam Divergence (mrad) | |
| 1064nm | <6 |
| 532nm | <5 |
| 355nm | <4 |
| 266nm | <4 |
| Beam Diameter (mm) | 2.0 ± 0.5 |
LIBS
LIDAR
PIV
Ablation
Pumping
Micromachining
