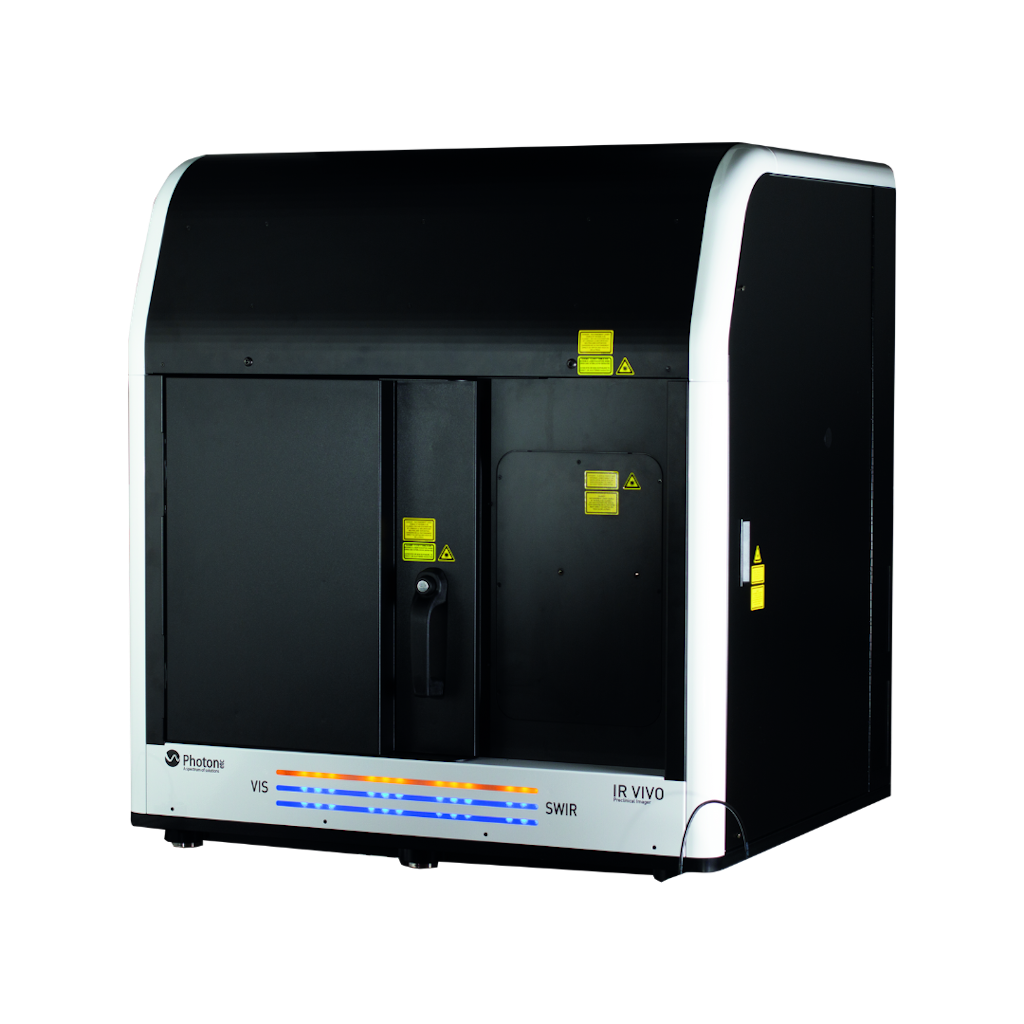

The IR VIVO NIR-II Preclinical Imager from Photon etc. is an infrared multispectral imager for small animal studies. This system benefits from reduced light scattering, absorption and auto-fluorescence by using a detection system in the near and short-wave infrared.
IR VIVO is a pre-clinical imager that images in the second biological window. IR VIVO allows you to visualize your biomarkers in vivo and in real-time with optimized contrast resolution and sensitivity. IR VIVO takes advantage of the most recent developments in SWIR imaging with an ultra-low-noise InGaAs camera (Alizé 1.7 or ZephIR 1.7), novel homogeneous illumination and powerful analytical software to provide an unprecedented combination of fast, high resolution and deep imaging.
High spatial resolution
High temporal resolution (real-time dynamics)
Non-ionizing & non-invasive
Good penetration depth (10x greater than traditional visible optical systems)
TECHNICAL SPECIFICATIONS
| Emission Spectral Range | 850-1620 nm Extension available in the visible |
| Filter Types | Multispectral: filter wheel Hyperspectral: HyperCube™ (<4nm spectral resolution (FWHM)) Single point detection: spectral probe |
| Illumination Source | 760 nm or 808 nm laser at 1 mW/mm² Other sources avalaible upon request |
| Illumination Area | 15.6 x 12.5 cm for three mice model |
| Field of View | Variable from 8 x 4 cm to 15.6 x 12.5 cm |
| Dimensions ( L x W x H ) | Tabletop: 77 x 60 x 98 cm |
| Stage Temperature | Up to 40ºC |
| Anesthetic Tubing and Nosecone | 3 mice anesthetic gaz manifold supplied |
| Preprocessing | Spatial filtering, Statistical tools, Spectrum extraction, Data normalization, Spectral calibration |
| Hyperspectral Data Format | HDF5, FITS |
| Single Image Data Format | HDF5, FITS, PNG, JPG |
| Spectrum Data Format | HDF5, CSV, JPG, PNG |
| Software | PC (Windows10 – 64-bits) with PHySpec™ control and analysis software (Computer included) |
| Power requirement | 120 VAC / 12A / 60Hz 230 VAC / 12A / 50Hz |
| Acquisition Modes Available | Unfiltered (broadband), filtered |
| CAMERA | |
|---|---|
| Type | nGaAs (Alizé™ 1.7 or ZephIR™ 1.7) |
| FPA | 640 x 512 pixels |
| Pixel Size | 15 µm |
| Lens | Wide lens: 30mm focal length, f#/1.4 NIR-II Macro lens: 50mm focal length, f#/1.4 NIR-II |
| Quantum Efficiency | >75% from 900 to 1600 nm |
