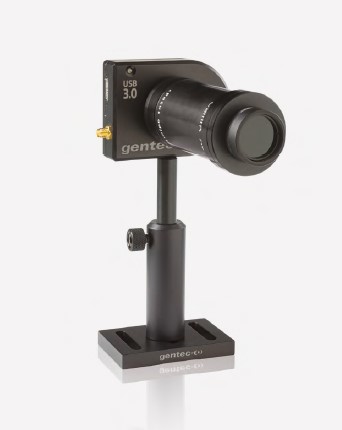

IR Adaptor wavelength management from Gentec-eo.
Typically, a CMOS silicon sensor operates at its full potential when imaging lasers with wavelengths between 350nm and 1150nm. Extend the range of a Beamage beam profiling camera to the near-IR telecom wavelength band using an IR Adaptor. This solution takes advantage of a multi-photon absorption process to extend the sensitivity range of the camera sensor to a portion of the near-IR spectrum (1495-1595nm).
Converts wavelengths between 1495nm and 1595nm to shorter wavelengths between 950nm and 1075nm.
Images larger beams due to the convergent properties of the optics (3 29X)
Built with a high-quality coated anti-reflection input window that allows wavelength conversion with low distortion and maximum image resolution.
Removable and easily C-mounted onto the entrance port of the camera.
Ready to use within minutes
SPECIFICATIONS
| Active Area | 27.5 mm Ø |
| IR Spectral Range | 1495-1595nm |
| Peak IR Sensitivity | 1501nm and 1540nm |
| Converted Wavelengths | 950nm – 1075nm |
| Pixel Multiplication Factor | 3.29 |
| Minimum Beam Size | 230μm |
| Maximum Beam Size | 19mm |
| Maximum Resolution | 12 lp/mm over active area 40 lp/mm at sensor focal plane |
| Distortion | -1.0% barrel distortion (inverted image) |
| Linearity | Non-linear, IR converted output, ~IR input intensity |
| Spectral Transmission | 360nm – 2000nm at FF30.8 |
| Damage Threshold | 1W/cm2 |
| Dimensions | 46mm Ø x 97 mm L |
| Operating Temperature | -10°C to +40°C |
| Weight | 210g |
