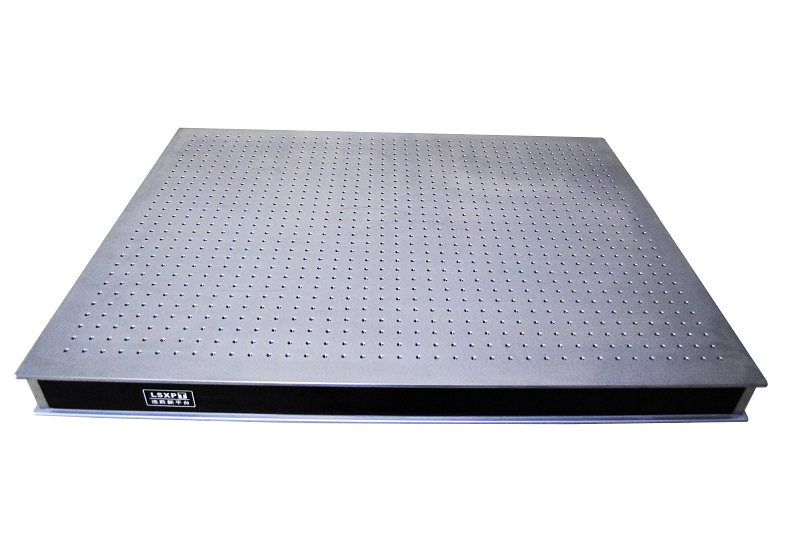

Zolix‘s MOT-F series of High-Density Honeycomb Optical Breadboard.
This tabletop has been designed to minimise vibrations for experiments and applications requiring high levels of stability. The MOT-F is a solid platform with high rigidity and low weight, ensuring the accuracy and integrity of your applications.
The High-Density Honeycomb Core Optical Breadboard is widely used in optical, medical and precision manufacturing applications.
The table’s high rigidity and low weight provide a solid mounting platform to ensure the accuracy and integrity of experiments.
The Breadboard is designed with a top and bottom skin structure with a honeycomb core.
| Breadboard thickness | 25mm, 50mm-300mm, (eg 50mm, 80mm, 100mm. 150mm) | |||||||
| Surface Plate | 430 Stainless Steel, thickness: 5mm | |||||||
| Single Honeycomb Dimension | Min: 6.25×10^-4m2, Max: 1.25×10^-3m2 | |||||||
| Damping Type | Broad-Band | |||||||
| Honeycomb Core Density | 250kg/m3 | |||||||
| Mounting Holes Type | Metric M6 tapped @25mmx25mm grid, Border Edge: 37.5mm. Customisable Options Available | |||||||
| Surface Flatness | ≤0.1 mm/m2 | |||||||
| Surface Roughness | ≤1.6µm, Matte Surface Finish |
Visit the webshop to shop for high-quality products and enjoy top-notch customer service.
