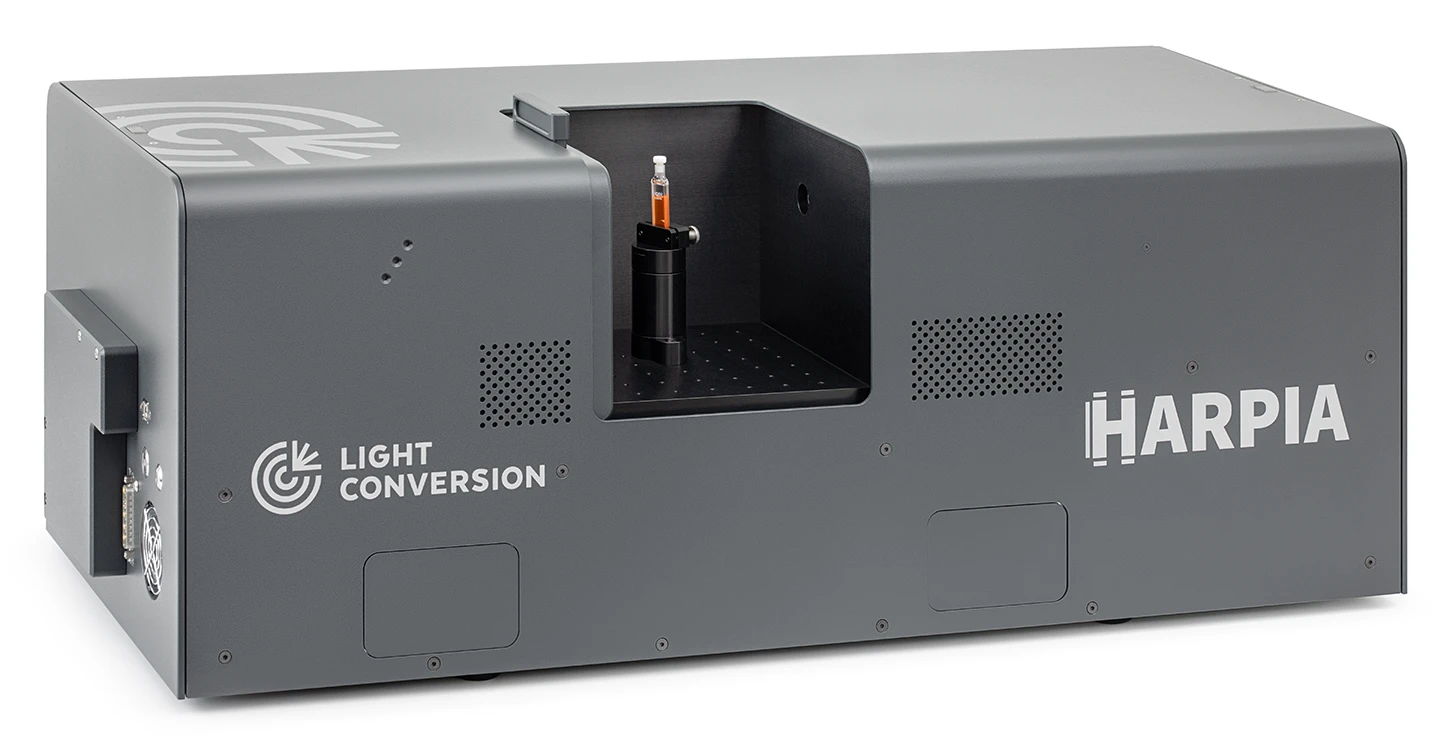

HARPIA-Light transient absorption spectroscopy system from Light Conversion. Classified as a Class 1 laser product, the HARPIA-Light combines accessibility, versatility, and unparalleled performance in a compact, single-box design.
HARPIA-Light transient absorption spectroscopy system from Light Conversion. Classified as a Class 1 laser product, the HARPIA-Light combines accessibility, versatility, and unparalleled performance in a compact, single-box design.
HARPIA-LIGHT excels in providing exceptional measurement sensitivity, high temporal resolution, and broad spectral coverage. Despite its compact size, it houses an industrial-grade CARBIDE femtosecond laser and a spectrograph with advanced, yet user-friendly data acquisition software. Its intuitive interface and streamlined workflow allow seamless operation, enabling users to save valuable time and effort. By simply placing the sample and clicking a button, instant access to a wealth of information is achieved.
Moreover, HARPIA-LIGHT also features flexible polarization control, a 7.5 ns delay line, and advanced analysis algorithms, providing extensive options for further data assessment. Based on advanced femtosecond laser technology, it ensures precise and accurate measurements of transient events over femto-to-nanosecond time scales.
| Model | HARPIA-Light |
|---|---|
| Modes | Transmission and Reflection |
| Probe Spectral Range | 460-910nm |
| Probe Polarisation Control | Linear (0-180°) |
| Pump Wavelengths | 515nm, 343nm |
| Delay Range (Resolution) | 7.5ns (10fs) |
| Temporal Resolution | ≤ 290 fs |
| Laser Repetition Rate | 60 kHz, Any Fundamental Repetition Rate Division |
| Maximum Data Acquisition Rate | 3850 Hz |
| Dimensions | 870.5 x 388 x 346 mm |
