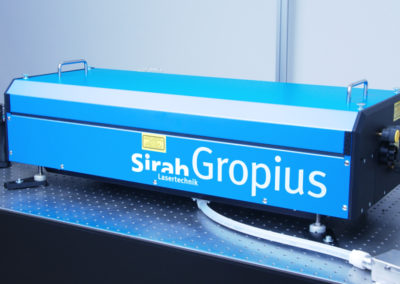

Sirah‘s Gropius synchronously pumped tunable picosecond dye laser is a simple and versatile source for tunable picosecond and sub-picosecond pulses in the VIS to NIR range.
Sirah‘s Gropius synchronously pumped tunable picosecond dye laser is a simple and versatile source for tunable picosecond and sub-picosecond pulses in the VIS to NIR range.

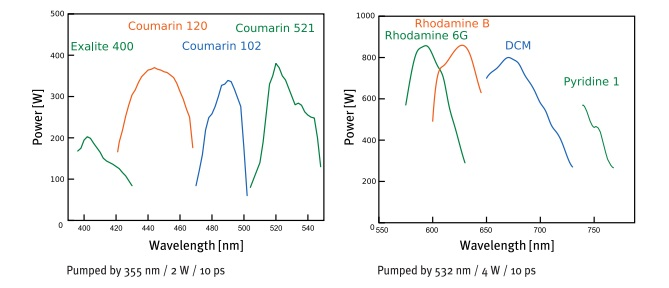

The term synchronous pumping refers to matching the cavity round-trip time of the dye laser to an integer multiple of the mode-locking frequency. The resulting output from the Gropius is a train of pulses at 80 MHz repetition rate which can be tuned over a wide spectral range.
| Beam Radius | 0.6-0.7 mm (typical) | |||||||
| Beam Divergence | < 1 mrad (Half Angle) | |||||||
| Time Bandwidth Product | < 0.6 | |||||||
| Pulse Width | 5 ps with 3-Plate BiFi | |||||||
| Beam Polarisation | Horizontal |
High-Resolution Spectroscopy
Pump-probe Spectroscopy
