Zolix‘s CXP and CXPF Series High-Precision Motorised Linear Stages. These are designed for a small footprint and high frequency of operation usage. These stages are built using hard aluminium alloys with surface treatments to further improve resistance to wear.

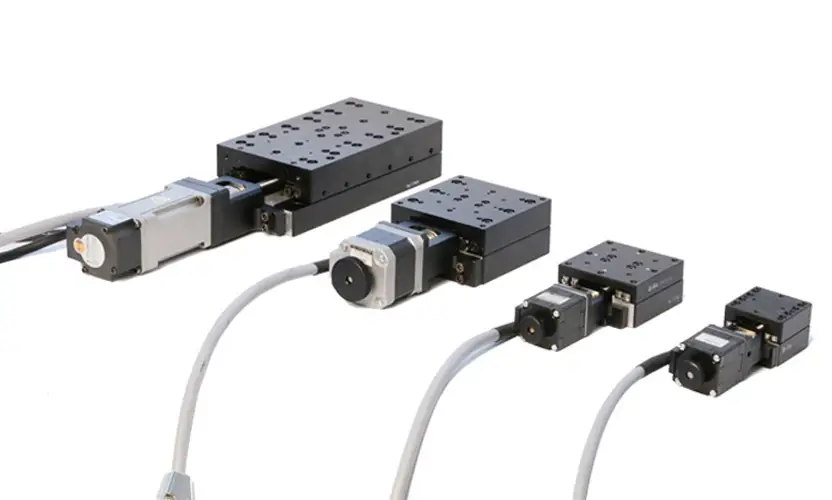

The CXP and CXPF families of linear motorised stages from Zolix offer precision at high-levels of motion, even with heavy load.
A cross-roller guide system and imported ball screws create a smooth and accurate mechanism that ensures micro-step capabilities and high positioning accuracy.
Mechanical Specifications
| Model number | CXP15-40 | CXP20-60 | CXPF30-80 | CXPF50-80100 | CXPF75-80125 | CXPF100-80175 |
|---|---|---|---|---|---|---|
| Table Dimensions (mm) | 40 x 40 | 60 x 60 | 80 x 80 | 80 x 100 | 80 x 125 | 80 x 175 |
| Travel Range (mm) | 15 | 20 | 30 | 50 | 75 | 100 |
| Transmission Mechanism | Ball Screws, Ball Screw,Φ6×1 | Ball Screws Φ8×2 | ||||
| Guides (Guiding Mechanism) | Cross-Roller Guides | |||||
| Main Body Materials and Surface Treatments | Black Anodic-Oxidation Aluminium Alloy</td | |||||
| Weight (kg) | 0.4 | 0.6 | 1.2 | 1.4 | 1.6 | 1.8 |
| Shaft coupling (external diameter-diameter of aperture 1-diameter of aperture 2) (mm) |
16-3-5 | 16-5-5 | ||||
Integration in production lines
Integration in automation equipment
Integration into automated instruments
