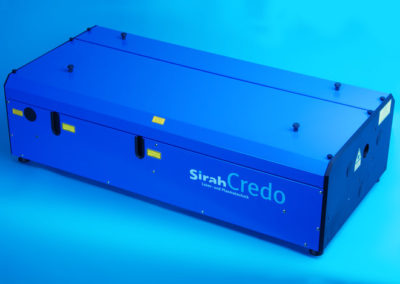

Sirah‘s Credo Tunable dye laser is optimised for use with high repetition diode pumped solid state (DPSS) laser systems.
The Credo features a specially designed low-threshold resonator that can be pumped by multi kHz 532nm and 355nm lasers.
Sirah‘s Credo Tunable dye laser is optimised for use with high repetition diode pumped solid state (DPSS) laser systems.
The Credo features a specially designed low-threshold resonator that can be pumped by multi kHz 532nm and 355nm lasers.
This unique narrowband dye laser can be configured to lase from 370nm – 900nm with fundamental wavelength output powers of up to 3.3mJ depending on the pump energy, repetition rate and laser dye used.
As is the case with all standard dye lasers from Sirah, efficient second harmonic generation (SHG) conversion is easily achieved with the Credo giving truly tunable UV radiation in the kHz region, opening up new research opportunities in areas such as combustion diagnostics, atmospheric research, laser-matter interaction studies and life sciences.
Tuning Range 690 .. 1010 nm
Pulse Duration approx. 30 ns
Repetition Rate 1 .. 3 kHz
Output Power 2.5 W (at peak wavelength)
Beam Size 1 mm (typical
Linewidth <0.2cm-1
LIDAR
LIF
High-Resolution Spectroscopy
Pump-probe Spectroscopy
