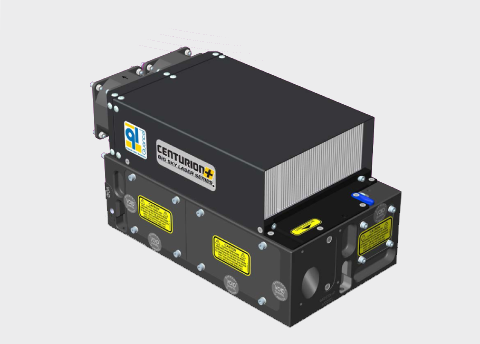

Quantel‘s Centurion+ compact diode-pumped solid-state laser is an air-cooled system that delivers 50 mJ energy in nanosecond pulses at repetition rates up to 100 Hz. This compact, diode pumped solid state laser
Quantel‘s Centurion+ compact diode-pumped solid-state laser is an air-cooled system that delivers 50 mJ energy in nanosecond pulses at repetition rates up to 100 Hz. This compact, diode pumped solid state laser
Diode pumping eliminates the need of water, reduces size, improves reliability, and eliminates most maintenance requirements.
Main Features:
| Resonator type | Multimode | |
|---|---|---|
| Repetition rate (Hz) | 1 – 100 | |
| Energy (mJ) | 1064 nm | 50 |
| 532 nm | 25 | |
| 355 nm | 8 | |
| 266 nm | 2.5 | |
| 1570 nm | 10 | |
| Pulse duration (ns) | 1064 nm | <14 |
| Beam divergence (mrad) | 1064 nm | < 9 |
| Dimensions in mm (H x L x W) |
Laser head | 142 x 278 x 154 |
| Power supply | Power supply integrated in laserhead – optional control box | |
| Weight in kg | Laser head | 6 |
| Power supply | Power supply integrated in laserhead – optional control box |
Ablation
Flat panel display
Process control LIBS
LIDAR
LIF
Mass spectroscopy
Laser ultrasound
OPO pumping
Ti:Sa pumping
Remote sensing
Variable attenuator and non-linear crystals integrated in laser head
Homogeneous near field beam intensity profiles
